DAHUA_PTZ19245U-IRB-N-B

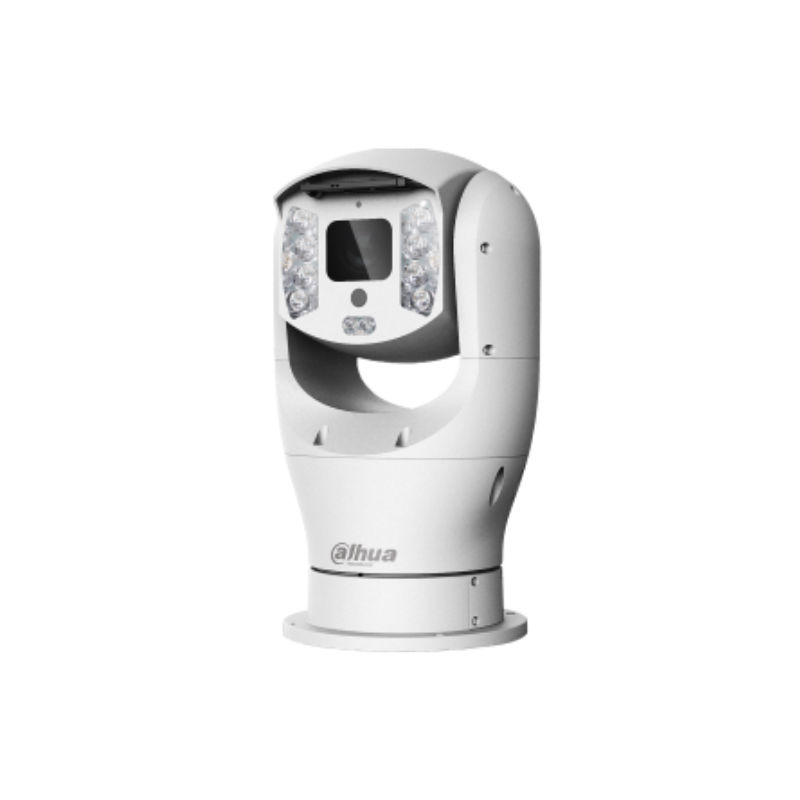

DAHUA PTZ19245U-IRB-N(-B)

2MP 45x Starlight IR Network Positioning System

> 1/2.8” 2Megapixels STARVIS™ CMOS
> Powerful 45x optical zoom
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> IR distance up to 350m
> NEMA 4X, IP68
分類:

描述

Camera

Image Sensor1/2.8” STARVIS™ CMOS
Effective Pixels1920(H) x 1080(V), 2 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum IlluminationColor: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N RatioMore than 56dB
IR DistanceDistance up to 350m (1148ft)
IR On/Off ControlAuto/Manual
IR LEDs8
Smart WiperSupport

Lens

Focal Length3.95mm~177.7mm
Max. ApertureF1.6~ F4.95
Angle of ViewH: 70.3° ~ 1.8°
Optical Zoom45x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
2345m(7694ft)938m(3077ft)469m(1539ft)234m(768ft)

PTZ

Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: 0° ~ 360° endless, effective tilt angle: -55° ~ 223°
Manual Control SpeedPan: 0.1° ~120° /s; Tilt: 0.1° ~60° /s
Preset SpeedPan: 120° /s; Tilt: 60° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)

Intelligence

Event TriggerMotion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Auto TrackingSupport
IVSTripwire, Intrusion, Abandoned/Missing
Advanced Intelligent FunctionsFace Detection, Heat Map

Video

CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame RateMain stream: 1080P/1.3M/720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 448K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR(120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization (EIS)Support
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas

Audio

CompressionG.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/MPEG2-Layer2

Network

EthernetRJ-45 (10Base-T/100Base-TX)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge StorageNAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android

Certifications

CertificationsCE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

Interface

Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS4851
Audio I/O1/1
Alarm I/O7/2

Electrical

Power SupplyAC24V/5A(±25%), Hi-PoE
Power ConsumptionFor DH-PTZ19245U-IRB-N:

AC 24V: 25W, 40W (IR on), 80W (IR on, Heater on)

Hi-PoE: 25W, 40W (IR on)

For DH-PTZ19245U-IRB-N-B:

AC 24V/Hi-PoE: 25W, 40W (IR on)

Environmental

Operating ConditionsFor DH-PTZ19245U-IRB-N:

AC 24V: -50°C ~ 70°C (-58°F ~ +158°F)

Hi-PoE : -40°C ~ 70°C (-40°F ~ +158°F)

For DH-PTZ19245U-IRB-N-B:

-40°C ~ 70°C (-40°F ~ +158°F)

Less than 95% RH

Ingress ProtectionIP68
Vandal ResistanceN/A

Construction

CasingMetal
DimensionsΦ234(mm) x 205(mm) x 405.5(mm)
Net Weight9.8kg(21.61lb)
Gross Weight15.5kg(34.17lb)
