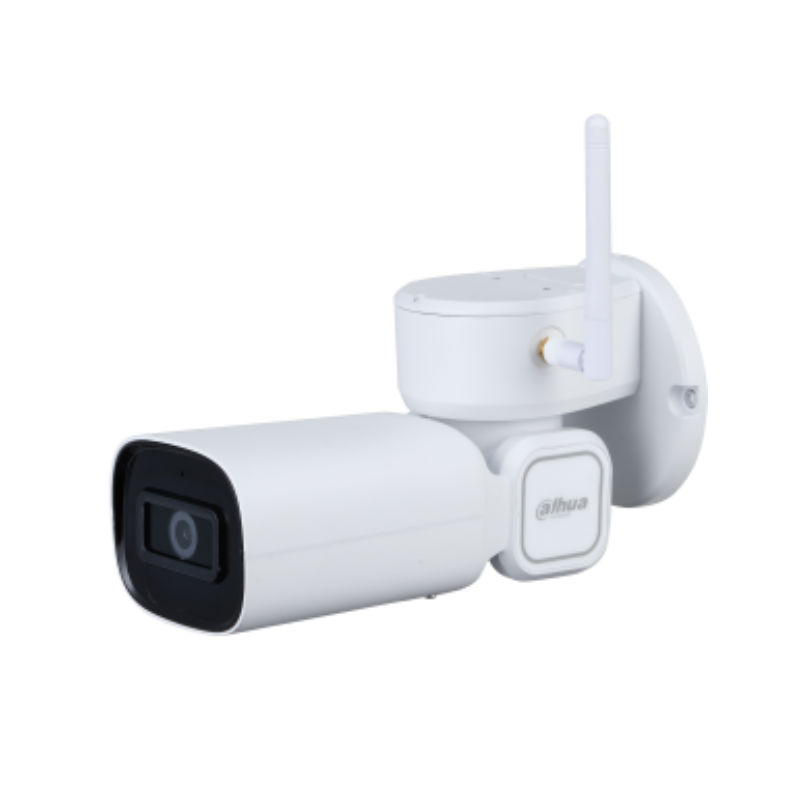

DAHUA PTZ1C203UE-GN-W

2MP 3X Starlight IR PTZ Wi-Fi Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Powerful 3x optical zoom
> Starlight technology
> Max. 25/30fps@1080P
> IVS
> WDR
> H.265 Encoding
> Support Wi-Fi
> IR distance up to 20m
> IP66

描述

Camera

Image Sensor1/2.8″ STARVIS™ CMOS
Max. Resolution2MP
Effective Pixels1920 (H) × 1080 (V)
ROM128MB
RAM256MB
Electronic Shutter Speed1/3–1/30000s
Minimum IlluminationColor: 0.005Lux@F1.8
B/W: 0.0005Lux@F1.8
0Lux (IR light on)
IR Distance20 m (65.6 ft)
IR On/Off ControlZoom Prio/Manual/SmartIR
IR LED Number1

Lens

Focal Length2.7mm–8.1mm
ApertureF1.8–F2.7
Field of ViewH: 46.43°–106.79°
V: 25.91°–57.88°
Optical Zoom3x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.8 m–1.7 m
Iris ControlFixed Iris
DORI DistanceDetectObserveRecognizeIdentify
101.4 m (332.68 ft)40.6 m (133.20 ft)20.3 m (66.60 ft)10.1m (33.14 ft)

PTZ

Pan/Tilt RangePan: 0°–180°; Tilt: -5°–+55°
Manual Control SpeedPan: 6°/s; Tilt: 3°/s

Intelligence

IVSTripwire; Intrusion; Object Abandoned/Missing
Advanced IntelligenceFace Detection; Heat Map

Video

Video CompressionH.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG; H.265 +; H.264+
Streaming Capability3 Streams
Resolution1080P (1920×1080); 1.3M (1280×960); 720P (1280×720); D1 (704×576); CIF (352×288)
Video Frame RateMain Stream:
1080P/1.3M/720P(1–25/30fps)
Sub Stream 1:
D1/CIF(1–25/30fps)
Sub Stream 2:
720P/D1/CIF(1–25/30fps)
Bit Rate ControlVariable Bit Rate/Constant Bit Rate
Video Bit RateH.264: 216 Kbps–8192 Kbps
H.265: 108 Kbps–8192 Kbps
Day/NightICR
BLCSupport
WDR120dB
HLCSupport
White BalanceAuto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
Motion DetectionSupport
Region of Interest (RoI)Support
Electronic Image StabilizationSupport
DefogElectronic Defog
Digital Zoom16x

Audio

Audio CompressionG.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729
Audio In1
Audio Out1

Network

Ethernet Port1 RJ-45 Port 10/100Base-T
Network ProtocolIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE
InteroperabilityONVIF; CGI
Streaming MethodUnicast/Multicast
User/Host20 (Total bandwidth 48M)
Edge StorageFTP; Micro SD card (256G); P2P
BrowserIE7 and newer versions
Chrome 42 and older versions
Firefox 52 and older versions
Safari
Management SoftwareSmart player
Configtool
SMART PSS
DMSS
DSS

Certifications

CertificationsCE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

Electrical

Power SupplyDC12V/1.5A±10%
Power Consumption7W
11W (PTZ, IR light)

Environmental

Operating Conditions–30°C to +60°C (–22°F to 140°F)
Operating Humidity≤95% RH
Ingress ProtectionIP66; TVS 4000V lightning protection; surge protection

Construction

Housing MaterialAluminium alloy ADC12
DimensionsWall mounted: 195.3 mm×90 mm×102.7 mm (7.69″×3.54″×4.04″)
Ceiling mounted: 190.8 mm×90 mm×112.2 mm (7.51″×3.54″×4.12″)
WeightNet Weight: 0.9 kg (1.98 lb);

Gross Weight: 1.2 kg (2.65 lb)
