描述

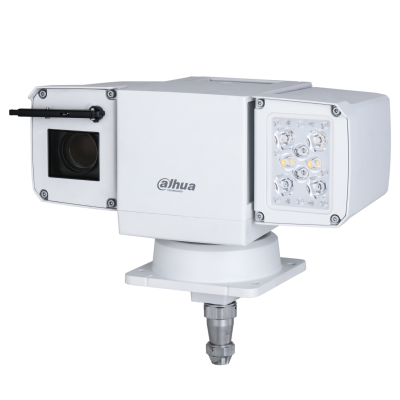

PTZ37225-HNP-GB-A-EG
2MP 25× Starlight IR Posittoning System
PTZ37225-HNP-GB-A-EG 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 [email protected] B/W: 0.0005 [email protected] 0 [email protected] (IR/white light on) |
| Illumination Distance | 50 m (164.04 ft) (white light); 150 m (492.13 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off |
| Illuminator Number | 4 (IR) 4 (white light) |
| Wiper | Wiper |
Lens
| Focal Length | 4.8 mm–120 mm |
|---|---|
| Max. Aperture | F1.6–F3.5 |
| Field of View | H: 58.5°–2.8° V: 33.2°–1.5° D: 67.5°–3.2° |
| Optical Zoom | 25× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto; manual |
| DORI Distance | LensDetectObserveRecognizeIdentifyW 66.2 m( 217.21 ft) 26.5 m( 86.88 ft) 13.2 m( 43.44 ft) 6.6 m ( 21.72 ft)T 1655.2 m( 5430.29 ft) 662.1 m( 2172.12 ft) 331.0 m( 1086.06 ft) 165.5 m ( 543.03 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –90° to +90° |
|---|---|
| Manual Control Speed | Pan: 0.1°/s–158°/s Tilt: 0.1°/s–53°/s |
| Preset Speed | Pan: 100°/s Tilt: 93.75°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
Intelligence
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking |
|---|---|
| Face Detection | Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| Construction Monitoring | Detects safety helmets that are red, orange, yellow, blue, white or black, and triggers alarms when people fail to wear their safety helmet or are wearing the wrong one. Supports uniform detection. You can upload up to 5 sample work uniform databases which support importing as many as 1,000 images in JPG format (1080p). When the similarity level between the detected uniform and the uniform sample in the database is too low, alarms are triggered. Offers Personal Protective Equipment Detection (PPE Detection), triggering alarms when the uniform color does not match, a person is not wearing a mask or they are not wearing a shoe cover. Performs lone working detection, triggering alarms when people are working alone in the detection area. Unmanned operation (leave post detection), triggers alarms when nobody is working in the detection area. |
| Auto Tracking | Yes |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264;H.264B;H.264H;MJPEG(Sub Stream 1) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 64 kbps–10496 kbps H.265: 25 kbps–6400 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
| S/N Ratio | ≥55 dB |
Audio
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | Smart PSS;DSS;DMSS;Easy4ip;IVSS;Player;ConfigTool;NVR;Smart Player |
| Mobile Client | iOS;Android |
Port
| RS-485 | 1 (baud rate: 1200 bps–9600 bps) |
|---|---|
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; preset; tour; pattern; recordings; alarm digital input; send email |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card status detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
Power
| Power Supply | 36 VDC/2.23 A ± 25% |
|---|---|
| Power Consumption | Basic: 13 W Max.: 25 W (illuminator+heater+PTZ) |
| Power Adapter | Optional |
Environment
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67;TVS 6000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions | 310 mm × 166 mm × 180 mm (12.20" × 6.54" × 7.09") (L × W × H) |
|---|---|
| Net Weight | 5.90 kg (13.01 lb) |
| Gross Weight | 6.98 kg (15.39 lb) |
