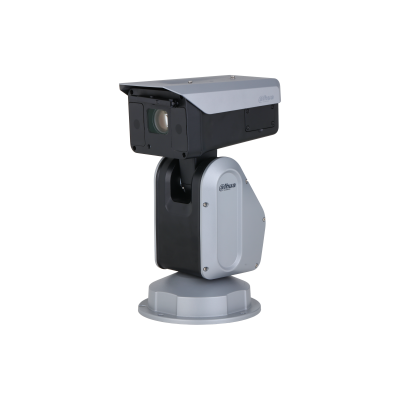

PTZ83440-HNR-GA-S
4MP 40X IR WizMind Network Positioning System
PTZ83440-HNR-GA-S 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Electronic Shutter Speed | 1s–1/30000s |
| Scanning System | Progressive |
| Min. Illumination | 0.001 [email protected] (Color, 30 IRE) 0.0004 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | 300 m (984.25 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off |
| Illuminator Number | 6 (IR light) |
| Wiper | Wiper |
Lens
| Focal Length | 5.5 mm–220 mm |
|---|---|
| Max. Aperture | F1.5–F4.8 |
| Field of View | H: 2.42°– 57.74°; V: 1.37°– 33.81°; D: 2.76°– 64.81° |
| Optical Zoom | 40× |
| Focus Control | Auto; Semi-auto; Manual |
| Close Focus Distance | 0.5 m–5 m (1.64 ft–16.4 ft) |
| Iris Control | Auto; Manual; Iris prio |
| DORI Distance | LensDetectObserveRecognizeIdentifyW 98.8 m( 324.14 ft) 39.5 m( 129.59 ft) 19.8 m( 64.96 ft) 9.9 m ( 32.48 ft)T 2364.1 m( 7756.23 ft) 945.7 m( 3102.69 ft) 472.8 m( 1551.18 ft) 236.4 m ( 775.59 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless ; Tilt: –45° to +90° |
|---|---|
| Manual Control Speed | Pan: 0.1°/s–140°/s; Tilt: 0.1°/s–50°/s |
| Preset Speed | Pan: 0.1°/s–140°/s; Tilt: 0.1°/s–50°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| PTZ Protocol | DH-SD Pelco-P/D(Auto recognition) |
Intelligence
| Video Metadata | Supports detection of motor vehicles, non-motor vehicles, faces and human bodies, optimization, capturing pictures, and uploading high-quality face snapshots. It extracts attributes from motor vehicles, detecting up to 10 attributes for motor vehicles |
|---|---|
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
| Face Detection | Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| AcuPick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG |
|---|---|
| Resolution | 4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 4M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/CIF@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 64 kbps–10496 kbps H265: 25 kbps–6400 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 140 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual; gain prio |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Gyroscope Image Stabilization (GIS) |
| Defog | Optical |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view Multiple colors and mosaic available |
| S/N Ratio | ≥55 dB |
Audio
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Mobile Client | iOS;Android |
Certification
| Certifications | CE:EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130-4,EN 55035 |
|---|
Port
| RS-485 | 1 (Bit range: 1200 bps–9600 bps) |
|---|---|
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Input | 7 (on-off value input: 0–5 VDC) |
| Alarm Output | 2 channels |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Optical Fiber | 100 M single fiber port Specifications: 1310 nm TX/1550 nm RX Transmission distance: 20 km (12.43 mi) |
Power
| Power Supply | 36 VDC, 2.23 A ± 25% |
|---|---|
| Power Consumption | Basic: 17 W Max. (Light on + PTZ operation): 33 W |
| Power Adapter | Included |
Environment
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Protection | IP67;TVS 6000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions | 257.5 mm × 206 mm × 385.1 mm (10.14" × 8.11" × 15.16") (L × W × H) |
|---|---|
| Net Weight | 6.9 kg (15.21 lb) |
| Gross Weight | 9.9 kg (21.83 lb) |
