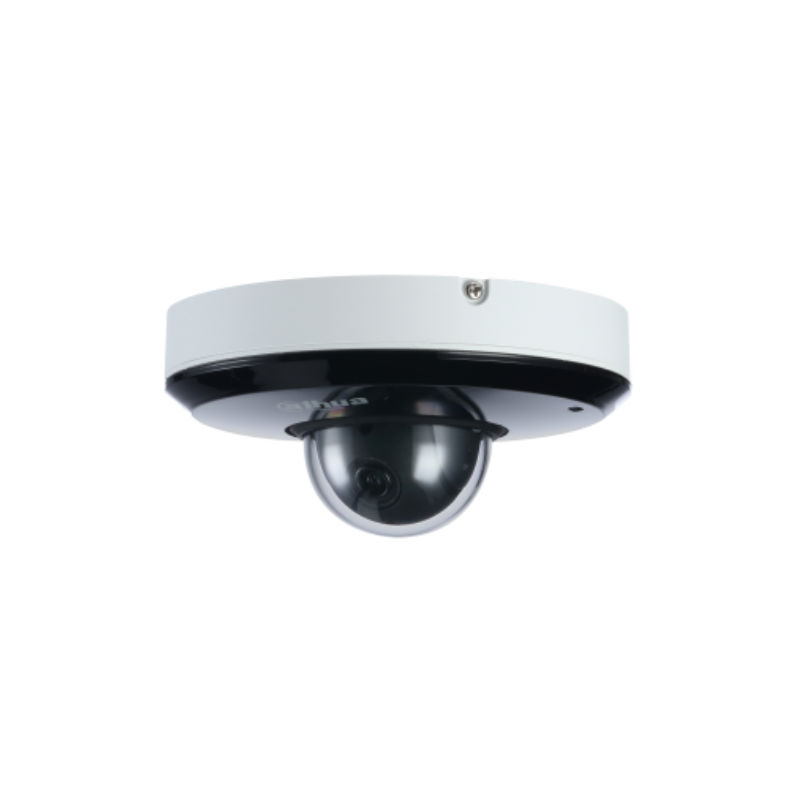

DAHUA SD1A203T-GN

2MP 3x Starlight IR PTZ Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Powerful 3x optical zoom
> Starlight, WDR
> Max. 25/30fps@1080P
> IVS
> Support PoE
> IR distance up to 15m
> IP66

描述

Camera

Image Sensor1/2.8” STARVIS™ CMOS
Effective Pixels1920(H) x 1080(V), 2 Megapixels
RAM/ROM512M/128M
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum IlluminationColor: 0.005Lux@F1.8; B/W: 0.0005Lux@F1.8; 0Lux@F1.8 (IR on)
S/N RatioMore than 50dB
IR DistanceDistance up to 15m (49.2ft)
IR On/Off ControlAuto/Manual
IR LEDs3

Lens

Focal Length2.7mm~8.1mm
Max. ApertureF1.8
Angle of ViewH: 105.6° ~ 35.2°
Optical Zoom3x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
100.4m(329.4)40.2m(131.9ft)20.1m(65.9ft)10m(32.8ft)

PTZ

Pan/Tilt RangePan: 0° ~ 355°; Tilt: 5° ~ 90°
Manual Control SpeedPan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s
Preset SpeedPan: 80° /s; Tilt: 40° /s
Presets300
PTZ Mode8 Tour
Speed SetupHuman-oriented focal Length/speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/Tour if there is no command in the specified period
ProtocolDH-SD

Intelligence

Event TriggerMotion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly
Auto TrackingN/A
IVSTripwire, Intrusion,Abandoned/Missing
Advanced Intelligent FunctionsFace Detection

Video

CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame RateMain stream: 1080P/720P(1 ~ 25/30fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 720P/D1/CIF(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 448K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR(120dB)
White BalanceAuto,ATW,Indoor,Outdoor,Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization (EIS)N/A
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas

Audio

CompressionG.711a/G.711mu/G.726/AAC

Network

EthernetRJ-45 (10XBase-T/100Base-TX)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge StorageNAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android

Certifications

CertificationsCE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video InterfaceN/A
RS485N/A
Audio I/OMic in/Line in, Line out
Alarm I/ON/A

Electrical

Power SupplyDC 12V/1.5A, PoE(802.3af)
Power Consumption7.8W, 10.5W (IR on)

Environmental

Operating Conditions-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress ProtectionIP66
Vandal ResistanceIK08

Construction

CasingMetal
DimensionsΦ128(mm) x 63(mm)
Net Weight0.49kg(1.08lb)
Gross Weight0.73kg(1.6lb)
