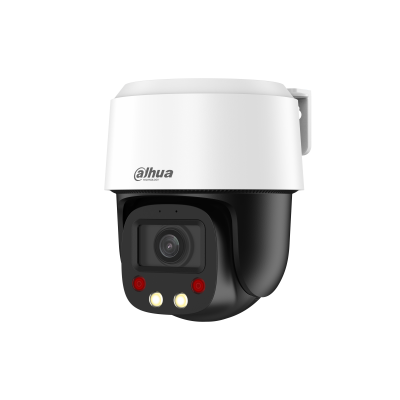

SD2C405NB-GNY-A-PV-S2
4MP 5x Smart Dual Light WizSense Network PTZ Camera
SD2C405NB-GNY-A-PV-S2 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.05 [email protected] (Color, 30 IRE); 0.005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR) |
| Illuminator On/Off Control | Manual; auto; off |
| Illuminator Number | 2 (IR light); 2 (warm light) |
Lens
| Focal Length | 2.7 mm–13.5 mm |
|---|---|
| Max. Aperture | F1.6–F3.0 |
| Field of View | H: 96.73°–24.76°; V: 51.98°–13.91°; D: 110.58°–29.74° |
| Optical Zoom | 5× |
| Focus Control | Auto; Semi-auto; Manual |
| Close Focus Distance | 0.6 m (1.97 ft) |
| Iris Control | Fixed |
| DORI Distance | LensDetectObserveRecognizeIdentify2.7 mm–13.5 mm 250 m( 820.21 ft) 98.7 m( 323.82 ft) 50 m( 164.04 ft) 25 m ( 82.02 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Pan: 0° to 345°; Tilt: 0° to +90° |
|---|---|
| Manual Control Speed | Pan: 0.1°–74°/s; Tilt: 0.1°–36.4°/s |
| Preset Speed | Pan: 0.1°–62°/s; Tilt: 0.1°–36.3°/s |
| Preset | 300 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
Smart Event
| IVS | Tripwire and intrusion |
|---|---|
| Human Detection | YES |
| Vehicle Detection | YES |
Intelligence
| Smart Tracking | Auto Tracking Lite |
|---|---|
| SMD | SMD 3.0 |
Active Deterrence
| Light Warning | Warm light warning Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
|---|---|
| Sound Warning | Offers 1 sound alarm and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
|---|---|
| Streaming Capability | 2 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 4M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 96 kbps–8,192 kbps H265: 38 kbps–8,192 kbps |
| Day/Night | Auto (ICR); Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Electronic |
| Digital Zoom | 5.5x |
| Image Rotation | 180° |
| S/N Ratio | ≥55 dB |
Audio
| Audio Compression | PCM; G.711a; G.711Mu; G.726 |
|---|---|
| Built-in MIC | YES |
| Built-in Speaker | YES |
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (Up to 256 GB); FTP |
| Browser | IE: IE 7 and later versions; Chrome; Firefox; Safari |
| Management Software | DMSS;DSS Pro |
| Mobile Client | iOS;Android |
Certification
| Certifications | CE: EN55032/EN50130-4 |
|---|
Port
| Audio Input | 1 channel (built-in mic) |
|---|---|
| Audio Output | 1 channel (built-in speaker) |
| Alarm Linkage | Capture; preset; recording; audio; sending email |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
Power
| Power Supply | 12 VDC, 1.5 A ± 10% PoE (802.3af) |
|---|---|
| Power Consumption | Basic: 5 W; Max: 12.95 W (illuminator + PTZ) |
| Power Adapter | Optional |
Environment
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Protection | IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions | 155.5 mm × Φ129.6 mm (6.12" × Φ5.10") |
|---|---|
| Net Weight | 0.65 kg (1.43 lb) |
| Gross Weight | 0.715 kg (1.58 lb) |
Filter
| Remarks | The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model. |
|---|
