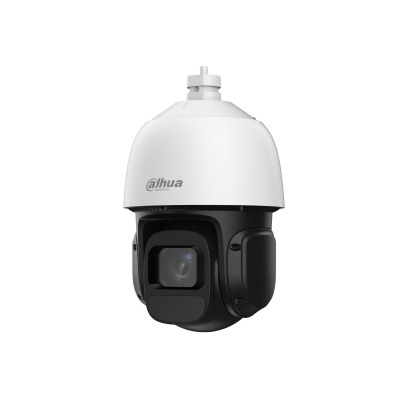

DAHUA SD3D216NB-GNY 2MP 16x IR WizSense Network PTZ Camera

描述

SD3D216NB-GNY

2MP 16x IR WizSense Network PTZ Camera

SD3D216NB-GNY 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

規格

Camera

Image Sensor	1/2.8" CMOS
Pixel	2 MP
Max. Resolution	1920 (H) × 1080 (V)
ROM	128 MB
RAM	128 MB
Electronic Shutter Speed	1 s–1/30,000 s
Scanning System	Progressive
Min. Illumination	0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on)
Illumination Distance	80 m (262.47 ft) (IR)
Illuminator On/Off Control	Zoom Prio; Manual; Auto; Off
Illuminator Number	3 (IR)

Lens

Focal Length	5.0 mm–80 mm
Max. Aperture	F1.6–F3.5
Field of View	H: 54.4°–4.1° ; V: 31.4°–2.3°; D: 61.3°–4.7°
Optical Zoom	16×
Focus Control	Auto; Semi-auto; Manual
Close Focus Distance	0.1 m–1 m (0.33 ft–3.28 ft)
Iris Control	Fixed

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range	Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°
Manual Control Speed	Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s
Preset Speed	Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Power-off Memory	Yes
Idle Motion	Preset
PTZ Protocol	DH-SD

Smart Event

IVS	Tripwire; intrusion

Intelligence

Smart Tracking	Auto Tracking 1.0
SMD	SMD 3.0

Video

Video Compression	Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability	2 streams
Resolution	1080p (1920 × 1080); 1.3MP (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 1080p/1.3M/720p @(1–25/30 fps) Sub stream: D1/VGA/CIF@ (1–25/30 fps)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 64 kbps–8,192 kbps H.265: 25 kbps–6,400 kbps
Day/Night	Auto (ICR); Color/B/W
BLC	Yes
WDR	120 dB
HLC	Yes
White Balance	Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Defog	Electronic Image Stabilization (EIS)
Digital Zoom	5×
Image Rotation	180°
S/N Ratio	≥55 dB

Network

Network Port	RJ-45 (10/100 Base-T)
Network Protocol	HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP
Interoperability	CGI;SDK;ONVIF (Profile S & Profile T)
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage	Micro SD card (256 GB); FTP
Browser	IE 7 and later versions; All Chrome versions; All Firefox versions; All Safari versions
Management Software	DSS Pro
Mobile Client	iOS;Android

Certification

Certifications	CE: EN55032/EN55024/EN50130-4

Port

Alarm Linkage	Capture; recording; send email
Alarm Event	Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply	12 VDC, 2 A ± 10% PoE+ (802.3at)
Power Consumption	Basic: 8 W Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation + Heater ): 18 W (12 VDC)
Power Adapter	Optional

Environment

Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Protection	IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions	240 mm × Φ151.5 mm (9.45" × Φ5.94")
Net Weight	1.5 kg (3.31 lb)
Gross Weight	2.5 kg (5.51 lb)

Filter

Remarks	The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
