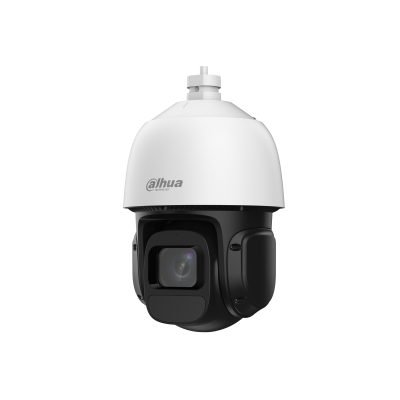

SD3D416NB-GNY
4M 16x IR WizSense Network PTZ Camera
SD3D416NB-GNY 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/2.8" CMOS |
| Pixel |
4 MP |
| Max. Resolution |
2560 (H) × 1440 (V) |
| ROM |
128 MB |
| RAM |
128 MB |
| Electronic Shutter Speed |
1 s–1/30,000 s |
| Scanning System |
Progressive |
| Min. Illumination |
Color: 0.005 [email protected]; Black and white: 0.0005 [email protected]; 0 lux (IR light on) |
| Illumination Distance |
80 m (262.47 ft) (IR) |
| Illuminator On/Off Control |
Zoom Prio; Manual; Auto; Off |
| Illuminator Number |
3 (IR) |
Lens
| Focal Length |
5.0 mm–80 mm |
| Max. Aperture |
F1.6–F3.5 |
| Field of View |
H: 50.56°–3.84°; V: 29.48°–2.16°; D: 57.69°–4.39° |
| Optical Zoom |
16× |
| Focus Control |
Auto; Semi-auto; Manual |
| Close Focus Distance |
0.1 m–1 m (0.33 ft–3.28 ft) |
| Iris Control |
Auto; Manual; Iris prio |
| DORI Distance |
LensDetectObserveRecognizeIdentify5.0 mm–80 mm 1,600.00 m( 5,249.34 ft) 632.00 m( 2,073.49 ft) 320.00 m( 1,049.87 ft) 160.00 m ( 524.93 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range |
Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed |
Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s |
| Preset Speed |
Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s |
| Preset |
300 |
| Tour |
8 (up to 32 presets per tour) |
| Power-off Memory |
Yes |
| Idle Motion |
Preset |
| PTZ Protocol |
DH-SD |
Smart Event
Intelligence
| Smart Tracking |
Auto Tracking 1.0 |
| SMD |
SMD 3.0 |
Video
| Video Compression |
Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Streaming Capability |
2 streams |
| Resolution |
4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate |
Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream: D1/VGA/CIF@(1–25/30 fps) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H264: 96–8,192 kbps H265: 38–8,192 kpbs |
| Day/Night |
Auto (ICR); Color/B/W |
| BLC |
Yes |
| WDR |
120 dB |
| HLC |
Yes |
| White Balance |
Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control |
Auto; manual |
| Noise Reduction |
2D NR; 3D NR |
| Motion Detection |
Yes |
| Region of Interest (RoI) |
Yes |
| Defog |
Electronic Image Stabilization (EIS) |
| Digital Zoom |
5× |
| Image Rotation |
180° |
| S/N Ratio |
≥55 dB |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Network Protocol |
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP |
| Interoperability |
CGI;SDK;ONVIF (Profile S & Profile T) |
| Streaming Method |
Unicast/Multicast |
| User/Host |
20 (total bandwidth: 64 M) |
| Storage |
Micro SD card (256 GB); FTP |
| Browser |
IE 7 and later versions; All Chrome versions; All Firefox versions; All Safari versions |
| Management Software |
DSS Pro |
| Mobile Client |
iOS;Android |
Certification
| Certifications |
CE: EN55032/EN55024/EN50130-4 |
Port
| Alarm Linkage |
Capture; recording; send email |
| Alarm Event |
Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
Power
| Power Supply |
12 VDC, 2 A ± 10% PoE+ (802.3at) |
| Power Consumption |
Basic: 8 W Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation + Heater ): 18 W (12 VDC) |
| Power Adapter |
Optional |
Environment
| Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity |
≤95% |
| Protection |
IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions |
240 mm × Φ151.5 mm (9.45" × Φ5.94") |
| Net Weight |
1.5 kg (3.31 lb) |
| Gross Weight |
2.5 kg (5.51 lb) |
Filter
| Remarks |
The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model. |
