描述

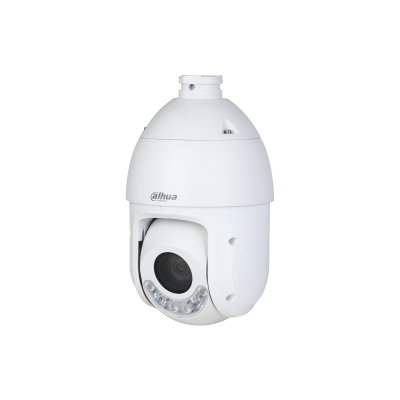

SD4E825MB-HNR-A-PV1
8MP 25 Starlight Smart Dual Illumination Network PTZ Camera
SD4E825MB-HNR-A-PV1 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Pixel | 8 MP |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance | 100 m (328.08 ft) (IR); 50 m (164.04 ft) (Dual Light Fusion-white light only); 50 m (164.04 ft) (Dual Light Fusion-IR light only) |
| Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off |
| Illuminator Number | 2 (IR) 2 (Dual light fusion) 1 (Red light) 1 (Blue light) |
Lens
| Focal Length | 5 mm–125 mm |
|---|---|
| Max. Aperture | F1.6-F3.6 |
| Field of View | H: 53.1°–3.4°; V: 30.4°–1.9°; D: 59.3°–3.9° |
| Optical Zoom | 25× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto; manual |
| DORI Distance | LensDetectObserveRecognizeIdentifyW 137.9 m( 452.52 ft) 55.2 m( 181.01 ft) 27.6 m( 90.50 ft) 13.8 m ( 45.25 ft)T 3448.3 m( 11313.10 ft) 1379.3 m( 4525.24 ft) 689.7 m( 2262.62 ft) 344.8 m ( 1131.31 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–120°/s |
| Preset Speed | Pan: 0.1°/s–240°/s; Tilt: 0.1°/s–200°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
Intelligence
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
|---|---|
| Face Detection | Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| Smart Tracking | WizTracking |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | After an IVS event occurs, the PTZ camera immediately initiates automatic patrol of presets to quickly cover potential risk areas and detect unknown threats in real time. |
Active Deterrence
| Light Warning | Red-blue light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
|---|---|
| Sound Warning | Offers 11 types of sound alarms, and supports importing custom sound alarms. |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264;H.264B;H.264H;MJPEG(Sub Stream 1) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution | 4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 4K/4M/3M/1080p/1.3 M/720p@(1–25/30 fps) Sub stream 1: D1/CIF/VGA@(1–25/30 fps) Sub stream 2: 1080p/1.3 MP/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 128 Kbps–16,384 Kbps H265: 128 Kbps–11,776 Kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 32 areas can be set, with up to 8 areas in the same view; multiple colors available |
| S/N Ratio | ≥ 55 dB |
Audio
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
|---|---|
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions |
| Management Software | DMSS;DSS Pro |
| Mobile Client | iOS;Android |
Certification
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
|---|
Port
| Audio Input | 1 channel (LINE IN, bare wire) |
|---|---|
| Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)） |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
Power
| Power Supply | 12 VDC; 3 A (±10%); PoE+ (802.3at) |
|---|---|
| Power Consumption | 12 VDC: Basic: 7 W; Max: 16 W (white light+heated glass+PTZ on+alarm+red and blue light flashing) POE: Basic: 9 W; Max: 20.5 W (white light+heated glass+PTZ on+alarm+red and blue light flashing) |
| Power Adapter | Optional |
Environment
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
|---|---|
| Operating Humidity | ≤ 95% |
| Protection | IP67;TVS 6000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions | 269.9 mm × Φ160.0 mm (10.63" × Φ6.30") |
|---|---|
| Net Weight | 2.6 kg (5.73 lb) |
| Gross Weight | 4 kg (8.82 lb) |
