描述

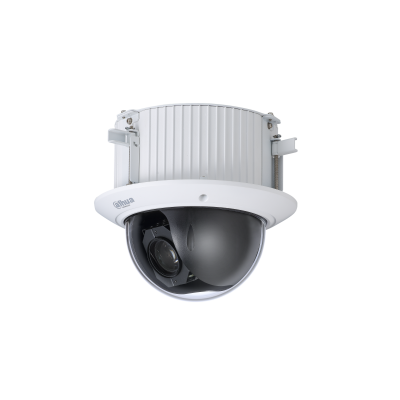

SD52C232MB-HNR
2MP 32 Starlight Non Compensation Light Network PTZ Camera
SD52C232MB-HNR 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Electronic Shutter Speed | 1/1–1/30000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 [email protected] B/W: 0.0005 [email protected] |
Lens
| Focal Length | 4.8 mm–154 mm |
|---|---|
| Max. Aperture | F1.6–F4.0 |
| Field of View | H: 58.4°–3.0°; V: 33.4°–1.7°; D: 66.4°–3.4° |
| Optical Zoom | 32× |
| Focus Control | Auto; Semi-auto; manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto; Manual |
| DORI Distance | LensDetectObserveRecognizeIdentifyW 68.6 m( 224.9 ft) 27.1 m( 88.84 ft) 13.7 m( 44.98 ft) 6.8 m ( 22.49 ft)T 2200 m( 7,216 ft) 869 m( 2,850.32 ft) 440 m( 1,443.2 ft) 220 m ( 721.6 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: 0° to +90°, auto flip 180° When the vertical field of view is between 0° and 10°, the device case will block part of the image |
|---|---|
| Manual Control Speed | Pan: 0.1°/s–350°/s; Tilt: 0.1°/s–250°/s |
| Preset Speed | Pan: 500°/s; Tilt: 500°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| PTZ Protocol | DH-SD |
Intelligence
| Video Metadata | Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them. |
|---|---|
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; Vehicle/Human Alarm Classification; linkage tracking |
| Face Detection | Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first |
| People Counting | Supports tripwire for people counting at entrances and exits, counting the number of people staying in an area and queuing in an area, and displaying and exporting reports based on the day, week and month. |
| Smart Tracking | WizTracking |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264;H.264B;H.264H;MJPEG(Sub Stream 1) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 1080p/1.3M/720p@(1–50/60 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.265/H.264: 3 kbps–20480 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D; 3D |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 32 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥ 55 dB |
Audio
| Audio Compression | G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729; G.723; PCM |
|---|
Network
| Network Port | RJ-45 (10/100Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;RTMP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | IE 9 and later versions Chrome 42 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | Smart PSS;DSS;Easy4ip;Smart Player |
| Mobile Client | iOS;Android |
Certification
| Certifications | CE: EN 50130-4 EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 62368-1 |
|---|
Port
| Audio Input | 1 channel (LINE IN, bare wire) |
|---|---|
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; preset; tour; pattern; recording; alarm digital input; audio; send email |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
Power
| Power Supply | 24 VDC; 2.5 A (±25%); PoE+ (802.3at) |
|---|---|
| Power Consumption | Basic: 12.8 W Max: 16 W |
| Power Adapter | Included |
Environment
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|---|
| Operating Humidity | ≤ 95% (RH) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IK10;TVS 6000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions | Φ186 mm × 253 mm (Φ7.32" × 9.96") |
|---|---|
| Net Weight | 2.2 kg (4.85 lb) |
| Gross Weight | 3.7 kg (8.16 lb) |
