描述

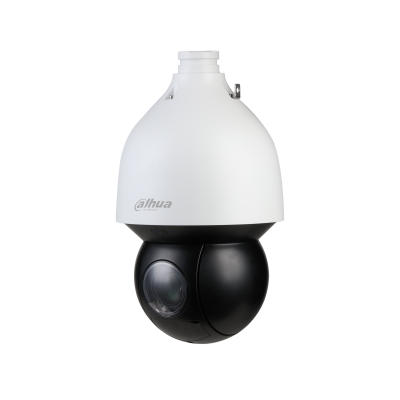

SD5A425MA-HNR
4MP 25 Starlight IR NETWORK PTZ CAMERA
SD5A425MA-HNR 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.001 [email protected] (Color, 30 IRE); 0.0001 [email protected](B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | 150 m (492.13 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off |
| Illuminator Number | 4 (IR light) |
Lens
| Focal Length | 5.4 mm–135 mm |
|---|---|
| Max. Aperture | F1.6–F4.0 |
| Field of View | H: 61.6°–3.6°; V: 35.7°–2°; D: 66.6°–4° |
| Optical Zoom | 25× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–2 m (0.33 ft–6.56 ft) |
| Iris Control | Auto, manual |
| DORI Distance | LensDetectObserveRecognizeIdentifyW 74.5 m( 244.3 ft) 29.4 m( 96.5 ft) 14.9 m( 48.86 ft) 7.4 m ( 24.43 ft)T 1862.1 m( 6,107.59 ft) 735.5 m( 2,412.5 ft) 372.4 m( 1,221.52 ft) 186.2 m ( 610.76 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless;Tilt: –15° to +90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–140°/s |
| Preset Speed | Pan: 0.1°/s–400°/s; Tilt: 0.1°/s–300°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
Intelligence
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 9 attributes for motor vehicle and 9 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
|---|---|
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
| Face Detection | Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| People Counting | Tripwire people counting and area people counting; generating and exporting report (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire people counting, area people counting, and queue management |
| Smart Tracking | WizTracking |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2304× 1296); 1080p (1920 × 1080); 960p (1280 ×960);720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 ×480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p @ (1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 96 Kbps–14,848 Kbps H265: 38 Kbps–8,960 Kbps |
| Day/Night | Auto (ICR); Color/B/W |
| BLC | Yes |
| WDR | 150 dB |
| HLC | Yes |
| White Balance | Auto; Indoor; Outdoor; Tracking; Manual; Sodium lamp; Natural light; Street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 32 areas can be set, with up to 8 areas in the same view; color block and mosaic selectable. |
| S/N Ratio | ≥55 dB |
Audio
| Audio Compression | PCM；G.711A；G.711Mu；G.726; MPEG2-Layer2；G.722.1；G.729；G.723； |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS |
| Interoperability | CGI;SDK;ONVIF (Profile S & Profile G & Profile T & Profile M) |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions |
| Management Software | DMSS;DSS Pro |
| Mobile Client | iOS;Android |
Certification
| Certifications | CE:EN 50130-4/EN 55032/EN 55035/EN 61000-3-3/EN IEC 61000-3-2/EN IEC62368-1 |
|---|
Port
| Audio Input | 1 channel (LINE IN, bare wire) |
|---|---|
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output |
| Alarm Event | Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 1/1 |
| Audio I/O | 1/1 |
Power
| Power Supply | 24 VDC (±25%); PoE+ (802.3at) |
|---|---|
| Power Consumption | Basic: 11 W Max. (Basic power consumption + WDR + IR on + PTZ operation): 22 W (24 VDC) |
| Power Adapter | Included |
Environment
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Protection | IP67;IK10;TVS 6000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions | 332.0 mm × Φ190.0 mm (13.07" × Φ7.48") |
|---|---|
| Net Weight | 4.7 kg (10.36 lb) |
| Gross Weight | 8 kg (17.64 lb) |
