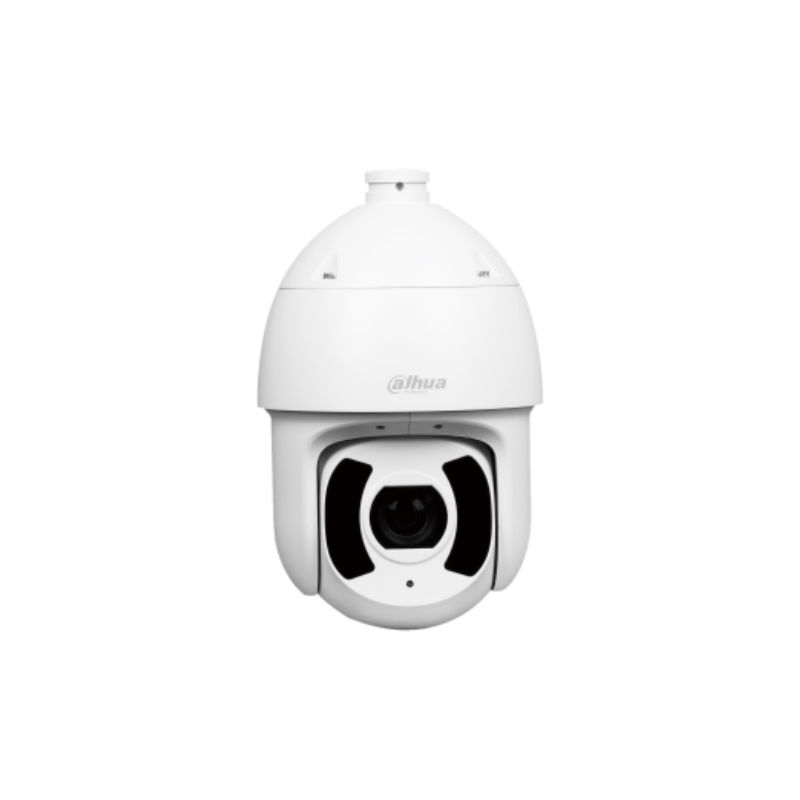

DAHUA SD6CE430I-HC-S3

4MP 30x IR PTZ HDCVI Camera

> 1/3” 4Megapixel CMOS
> Powerful 30x optical zoom
> 120dB true WDR, 3D DNR
> Max. 25/30fps@4M/1080P, 25/30/50/60fps@720P
> IR distance up to 200m
> IP67, IK10
Category:

Description

Camera

Image Sensor 1/3” CMOS
Effective Pixels 2560(H) x 1440(V), 4 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
IR Distance Distance up to 200m (656ft)
IR On/Off Control Auto/Manual
IR LEDs 6

Lens

Focal Length 4.5mm~135mm
Max. Aperture F1.6 ~ F4.4
Angle of View H: 60° ~ 2.2°
Optical Zoom 30x
Focus Control Auto/Manual
Close Focus Distance 100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect Observe Recognize Identify
2700m(8858ft) 1080m(3543ft) 540m(1772ft) 270m(886ft)

PTZ

Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 300° /s; Tilt: 200° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

Resolution 4M(2592×1520) / 1080P(1920×1080) / 720P(1280×720)
Frame Rate 25/30fps@4M/1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output/ CVBS standard definition video output (switchable)
Day/Night Auto(ICR) / Color / B/W
OSD Menu Support
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Defog Support
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas

Certifications

Certifications CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface 1 port(BNC, 1.0V[p-p], 75Ω)
RS485 1
Audio Interface 1 channel in
Alarm I/O 2/1

Electrical

Power Supply AC24V/3A(±25%)
Power Consumption 17W, 25W(IR on,Heater on)

Environmental

Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

Construction

Casing Metal
Dimensions φ209×337.4mm
Net Weight 5.8kg(12.79lb)
Gross Weight 9.6kg(21.16lb)
