描述

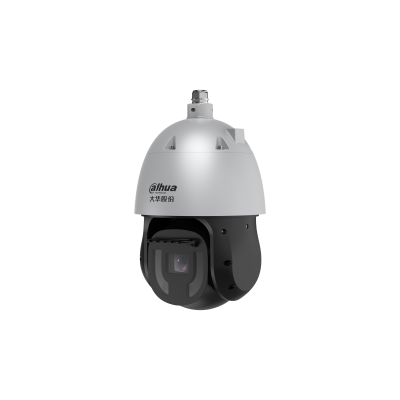

SD7X442MA-HNF-ATC
4MP 42× Anti-corrosion WizMind PTZ Camera
SD7X442MA-HNF-ATC 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 2560 (H) × 1440 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1 s–1/30,000 s |
| Min. Illumination | 0.001 [email protected] (Color) 0.0001 [email protected] (B/W) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 100 m (328.08 ft) (Warm light) Up to 400 m (1312.34 ft) (IR + Laser) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio;Off |
| Illuminator Number | 4 (Warm light); 4 (Laser light); 2 (IR light) |
| Wiper | Wiper |
| Angle Adjustment | Pan: 0° to 360° Tilt: –20° to 90° |
Lens
| Optical Zoom | 42× |
|---|---|
| Focal Length | 6.0 mm–252 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 63.9°–2.1°; V: 37.3°–1.2°; D: 71.2°–2.4° |
| Iris Control | Auto;Manual |
| Iris Control Type | Hall |
| Close Focus Distance | 1 m–5 m (3.28 ft–16.40 ft) |
| DORI Distance | LensDetectObserveRecognizeIdentifyW 93.8 m( 307.74 ft) 37.5 m( 123.03 ft) 18.8 m( 61.68 ft) 9.4 m ( 30.84 ft)T 2536.6 m( 8322.18 ft) 1014.6 m( 3328.74 ft) 507.3 m( 1664.37 ft) 253.7 m ( 832.35 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Intelligence
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human), crossing fence, loitering detection, crowd gathering, parking detection. Supports linkage tracking. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. |
|---|---|
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Recognition | Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. It supports up to 5 face databases, where people can be added one by one or in batches. The face similarity can also be set, and faces can be compared against 10,000 faces. |
| Video Metadata | Supports detection of motor vehicles, non-motor vehicles, faces and human bodies, optimization, capturing pictures, and uploading high-quality face snapshots. It extracts attributes from motor vehicles and non-motors, detecting up to 9 attributes for motor vehicles and 7 for non-motor vehicles. It also extracts attributes from human faces and bodies, detecting up to 6 attributes for faces, and 8 for bodies. |
| Smart Tracking | Wiztracking |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
|---|---|
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288) |
| Bit Rate Control | VBR;CBR |
| Video Bit Rate | H.264: 32 kbps–14848 kbps H.265: 12 kbps–8960 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 150 dB |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural; street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Gyroscope EIS |
| Defog | Electronic |
| Digital Zoom | Yes |
| Image Rotation | 0°/180° |
| Privacy Masking | Up to 32 areas can be set, with up to 8 areas in the same view; color block and mosaic selectable |
Audio
| Audio Compression | PCM; G.711A; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729; G.723 |
|---|
Alarm
| Alarm Event | Motion detection; video tampering; audio detection; network disconnection; IP conflict; storage card status; storage space |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI; SDK |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | Micro SD card (supports max 1 TB); FTP/SFTP; NAS |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DMSS/NVR/DSS Pro |
| Mobile Client | iOS;Android |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning;SSL/TLS1.2;AES 256 |
Function
| Light Warning | Warm light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
|---|---|
| Sound Warning | Offers 16 sound alarms and supports importing custom sound alarms. Sound: high, medium, low. Duration: 5 s–30 s. (An external speaker is required.) |
| Heater (Window Heating) | Yes |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless, smart pan-tilt correction Tilt: –20° to +90°, auto flip 180°, smart pan-tilt correction |
|---|---|
| Manual Control Speed | Pan: 0°/s–240°/s; Tilt: 0°/s–120°/s |
| Preset | 300 |
| Preset Speed | Pan: 240°/s; Tilt: 120°/s |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
| Smart pan-tilt correction | YES |
Certification
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU NEMA 4X |
|---|
Port
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) |
|---|---|
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Input | 7 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
Power
| Power Supply | 36 VDC; 2.23 A (±25%); PoE++ (802.3bt) |
|---|---|
| Power Consumption | Basic: 15 W Max (Distant IR light 100% + tour + heating + wiper on): 35 W |
Environment
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
|---|---|
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Anti-corrosion Level | Professional Protection *The products are fitted with premium-level anti-corrosion protection, making them ideal for use in sensitive environments such as chemical plants, docks, and coastlines. They perform reliably in areas up to 2 km (1.24 mi) from the coast, as well as in regions prone to acid rain exposure. |
Structure
| Casing Material | Polymeric material |
|---|---|
| Product Dimensions | 378.5 mm × Φ241.7 mm (14.90" × Φ9.52") |
| Net Weight | 5.92 kg (13.05 lb) |
| Gross Weight | 8.64 kg (19.05 lb) |
