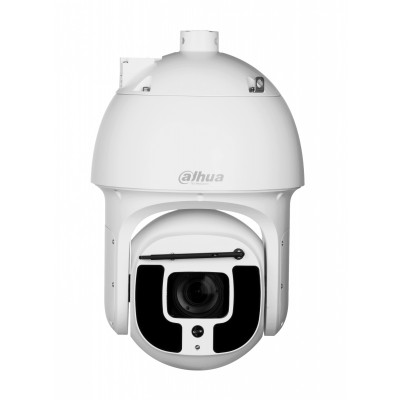

SD8A440FA-HNP-AID
4MP 40x Starlight IR Network PTZ Camera for Traffic Event
SD8A440FA-HNP-AID 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.001 [email protected] B/W: 0.0001 [email protected] 0 lux (IR light on) |
| Illumination Distance | 500 m (1,640.42 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off |
| Illuminator Number | 10 (IR) |
| Wiper | Smart wiper |
Lens
| Focal Length | 5.6 mm–223 mm |
|---|---|
| Max. Aperture | F1.4–F4.5 |
| Field of View | H: 61.8°–2.2°; V: 36.3°–1.3°; D: 69.2°–2.4° |
| Optical Zoom | 40× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) |
| Iris Control | Auto |
| DORI Distance | LensDetectObserveRecognizeIdentify5.6 mm–223 mm 3,030 m 1,204 m 606 m 303 m *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –30° to +90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s |
| Preset Speed | Pan: 240°/s; Tilt: 120°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
Intelligence
| Traffic Information Acquisition | Collects traffic flow data for the lanes. Up to 8 lanes can be added to each preset. |
|---|---|
| Traffic Event | Radius of monitoring area: 135 m (442.91 ft) for multiple scenes and 35 m (114.83 ft) for a single-scene. Detects wrong-way driving, parking, traffic accident, pedestrians and traffic congestion in the set area. 8 polygon detection areas can be added to each preset. |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264;H.264B;H.264H;MJPEG(Sub Stream 1) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288) |
| Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 512 kbps–13056 kbps H.265: 204 kbps–7936 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 140dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; auto sodium lamp; sodium lamp; auto outdoor |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Optical |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥ 55 dB |
Audio
| Audio Compression | G.711a; G.711mu; G.726; G722.1; G.729; MPEG2-Layer2; G723; PCM |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;QoS;FTP;UPnP;ICMP;SNMP;IGMP;RTP;PPPoE;RTMP;TCP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP; Micro SD card (512 GB) |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | CyberCity |
Port
| Analog Output | 1 channel (CVBS output, BNC) |
|---|---|
| RS-485 | 1 (baud rate: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Input | 7 (on-off value input: 0–5 VDC) |
| Alarm Output | 2 channels |
| Alarm Linkage | Capture; preset; tour; pattern; recordings on SD card; alarm digital input; send email; client E-map |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder state detection; memory card state detection; memory space detection; power fault detection |
| Alarm I/O | 7/2 |
| Audio I/O | 1/1 |
Power
| Power Supply | 36V DC/2.23A±25% HI-PoE |
|---|---|
| Power Consumption | Basic: 20 W Max.: 31 W (IR light on) |
| Power Adapter | Included |
Environment
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
|---|---|
| Operating Humidity | ≤ 95% |
| Protection | IP67;TVS 6000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions | 415.9 mm × Φ262.0 mm (16.37" × Φ10.31") |
|---|---|
| Net Weight | 8.5 kg (18.74 lb) |
| Gross Weight | 12.5 kg (27.56 lb) |
