描述
SDT2A200-2F-NB-A-PV

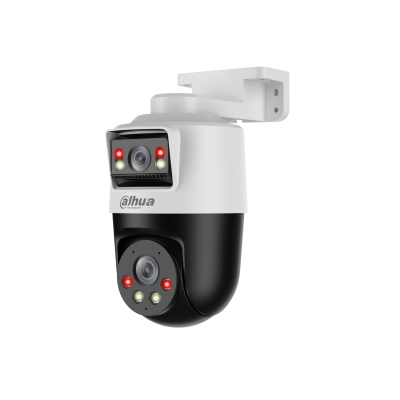

2+2MP Smart Dual Light WizSense X-Spans Network PT Camera
SDT2A200-2F-NB-A-PV 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
Fixed lens: 1/2.8" CMOS; PT lens: 1/2.8" CMOS |
| Pixel |
Fixed lens: 2 MP; PT Lens: 2 MP |
| Max. Resolution |
Fixed lens: 1920 (H) × 1080 (V); PT Lens: 1920 (H) × 1080 (V) |
| ROM |
128 MB |
| RAM |
128 MB |
| Electronic Shutter Speed |
Fixed lens: 1 s–1/100,000 s; PT Lens: 1 s–1/100,000 s |
| Scanning System |
Progressive |
| Min. Illumination |
Fixed lens: 0.05 [email protected] (Color, 30 IRE); 0.005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on); PT Lens: 0.05 [email protected] (Color, 30 IRE); 0.005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance |
Fixed lens: 4 mm; PT Lens: 4 mm: Fixed lens: 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR); PT Lens: 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR) |
| Illuminator On/Off Control |
Fixed lens: Manual; Auto; Off; PT Lens: Manual; Auto; Off |
| Illuminator Number |
Fixed lens: 2 (IR); 2 (warm light); PT Lens: 2 (IR); 2 (warm light) |
Lens
| Focal Length |
Fixed lens: 4 mm; PT Lens: 4 mm |
| Max. Aperture |
Fixed lens: F1.6; PT Lens: F1.6 |
| Field of View |
Fixed lens: 4 mm; PT Lens: 4 mm: Fixed lens: H: 85.7°; V: 47.1°; D: 100°; PT Lens: H: 85.7°; V: 47.1°; D: 100° |
| Close Focus Distance |
Fixed lens: 4 mm; PT Lens: 4 mm: Fixed lens: 0.8 m (2.62 ft); PT Lens: 0.8 m (2.62 ft) |
| Iris Control |
Fixed lens: Fixed iris; PT Lens: Fixed iris |
| DORI Distance |
LensDetectObserveRecognizeIdentifyFixed lens: 4 mm; PT Lens: 4 mm 53.6 m( 175.82 ft) 21.2 m( 69.55 ft) 10.7 m( 35.10 ft) 5.3 m ( 17.39 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range |
Fixed lens: Manual adjustment Pan：0°–326°; Tilt: –10°–15° PT Lens: Electric adjustment Pan：0°–350°; Tilt: 0°–90° |
| Manual Control Speed |
Pan: 0.1°–36°/s; Tilt: 0.1°–25°/s |
| Preset Speed |
Pan: 36°/s; Tilt: 25°/s |
| Preset |
50 |
| Power-off Memory |
Yes |
| Idle Motion |
Preset |
Smart Event
| Human Detection |
Fixed lens: Yes; PT Lens: Yes |
| Vehicle Detection |
Fixed lens: Yes; PT Lens: Yes |
Intelligence
Active Deterrence
| Light Warning |
White light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning |
Offers 3 sound alarm and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10. |
Video
| Video Compression |
Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H |
| Streaming Capability |
2 streams |
| Resolution |
Fixed lens: 1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360); QVGA (320 × 240); PT Lens: 1080p (1920 × 1080); 720p (1280 × 720); 360p (640 × 360); QVGA (320 × 240); |
| Video Frame Rate |
Fixed lens: Main stream: 1080p/720p/640×360@(1–25/30 fps) Sub stream 1: 640×360/QVGA@(1–25/30 fps) PT Lens: Main stream: 1080p/720p/640×360@(1–25/30 fps) Sub stream 1: 640×360/QVGA@(1–25/30 fps) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H264: 48 kbps–4,096 kbps H265: 19 kbps–4,096 kbps |
| Day/Night |
Fixed lens: Auto (ICR)/Color/B/W; PT Lens: Auto (ICR)/Color/B/W |
| BLC |
Yes |
| WDR |
DWDR |
| HLC |
Yes |
| White Balance |
Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control |
Auto; manual |
| Noise Reduction |
2D NR; 3D NR |
| Motion Detection |
Yes |
| Image Rotation |
180° |
| Privacy Masking |
4 areas |
| S/N Ratio |
≥55 dB |
Audio
| Audio Compression |
PCM; G.711a; G.711Mu; G.726 |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Network Protocol |
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;DHCP;DNS;DDNS;IPv6;SSL;ARP;RTCP;RTP;IP Filter |
| Interoperability |
CGI;SDK;ONVIF (Profile S & Profile T) |
| Streaming Method |
Unicast/Multicast |
| User/Host |
20 (total bandwidth: 64 M) |
| Storage |
Micro SD card (256 GB) |
| Browser |
IE 7 and later versions; All Chrome versions; All Firefox versions; All Safari versions |
Certification
| Certifications |
CE: EN55032/EN55024/EN50130-4 |
Port
| Audio Input |
1 channel (built-in mic) |
| Audio Output |
1 channel (built-in speaker) |
| Alarm Linkage |
Capture; recording; audio; warning light; preset |
| Alarm Event |
Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
Power
| Power Supply |
12 VDC/1.5 A ± 10% PoE (802.3af) |
| Power Consumption |
Basic: 4 W; Max: 12 W (illuminator + PTZ +sound and light warning) |
| Power Adapter |
Optional |
Environment
| Operating Temperature |
–20 °C to +50 °C (–4 °F to +122 °F) |
| Operating Humidity |
≤95% |
| Protection |
IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions |
159.4 mm × 110.0 mm × 210.1 mm (6.28" × 4.33"× 8.27") (L × W × H） |
| Net Weight |
1 kg (2.20 lb) |
| Gross Weight |
1.5 kg (3.31 lb) |
Filter
| Remarks |
The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model. |
