描述

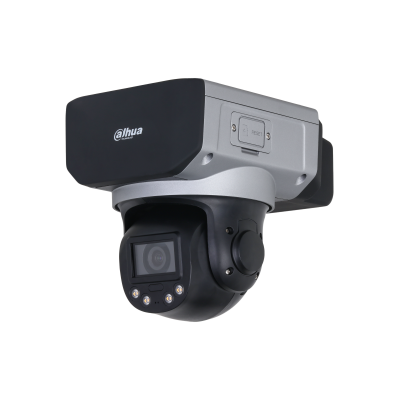

SDT3A400-GA-HNP-BX
4MP Starlight+ White Light Network PT Camera
SDT3A400-GA-HNP-BX 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 1 GB |
| RAM | 32 GB |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 [email protected] (Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) 0 lux (illuminator on) |
| Illumination Distance | 4 mm: 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Manual; Auto; Off |
| Illuminator Number | 4 (Warm light) |
Lens
| Focal Length | 4 mm |
|---|---|
| Max. Aperture | F1.0 |
| Field of View | 4 mm: H: 90.35° V: 49.03° D: 105.95° |
| Close Focus Distance | 4 mm: 3.5 m (11.48 ft) |
| DORI Distance | LensDetectObserveRecognizeIdentify4 mm 70.3 m( 230.64 ft) 28.1 m( 92.19 ft) 14.1 m( 46.26 ft) 7.0 m ( 22.97 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Pan: 0° to 340° Tilt: –20° to +90° |
|---|---|
| Manual Control Speed | Pan: 0.1°/s–40°/s; Tilt: 0.1°/s–40°/s |
| Preset Speed | Pan: 40°/s Tilt: 40°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| PTZ Protocol | DH-SD Pelco-P/D(Auto recognition) |
Intelligence
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; |
|---|---|
| Hydrological Monitoring | Detects engineering trucks and the proportion of floating debris that accumulated in the water within the monitored region. |
Active Deterrence
| Light Warning | Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
|---|---|
| Sound Warning | Built in 27 voice alarm contents, supporting custom import of voice contents; Sound: 0-100 adjustable; The playback frequency can be adjusted from 1 to 10 times |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264;H.264B;H.264H;MJPEG |
|---|---|
| Streaming Capability | 3 streams |
| Resolution | (2560 × 1440); 3M (2048 × 1536);(2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 96 kbps–13056 kbps H265: 38 kbps–7936 kbps |
| BLC | Yes |
| WDR | 140 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
| S/N Ratio | ≥55 dB |
Audio
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
|---|---|
| Built-in Speaker | Yes |
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP/SFTP; Micro SD card (512 GB); NAS |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DMSS;DSS Pro |
| Mobile Client | iOS;Android |
Certification
| Certifications | CE:EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130-4,EN 55035 |
|---|
Port
| RS-485 | 2 (Bit range: 1200 bps–9600 bps) |
|---|---|
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)） |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
Power
| Power Supply | 12 VDC, 2 A ± 10%（included） |
|---|---|
| Power Consumption | Basic: 7.0 W Max: 12 W (illuminator + heating glass + PTZ + radar) |
| Power Adapter | Included |
Environment
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Protection | IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection |
Structure
| Casing Material | ADC12;PC;PC+GF |
|---|---|
| Product Dimensions | 238.7 mm × 156.6 mm × 208.3mm (9.40" × 6.17" × 8.2") (L × W × H) |
| Net Weight | 1.8 kg (3.97 lb) |
| Gross Weight | 3.5 kg (7.72 lb) |
