描述

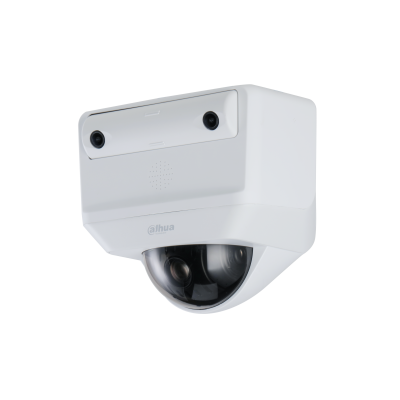

SDT4A404-4F-QA
X-spans 4MP+4MP 4x Wizmind Network PTZ Camera
SDT4A404-4F-QA 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | Panorama: 1/2.8" CMOS; Detail: 1/1.8" CMOS |
|---|---|
| Pixel | Panorama: 4 MP; Detail: 4 MP |
| Max. Resolution | Panorama: 2560 (H) × 1440 (V); Detail: 2688 (H) × 1520 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Electronic Shutter Speed | 1s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Panorama: 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE) Detail: 0.001 [email protected] (Color, 30 IRE); 0.0001 [email protected] (B/W, 30 IRE) |
Lens
| Focal Length | Panorama: 2.2 mm; Detail: 8 mm–32 mm |
|---|---|
| Max. Aperture | Panorama: F2.2; Detail: F1.7 |
| Field of View | Panorama: H: 122°; V: 72°; D: 139°; Detail: H: 15°–42°; V: 8°–23°; D: 17°–49° |
| Optical Zoom | 4× |
| Focus Control | Auto; semi-auto; manual; |
| Close Focus Distance | Panorama: 0.2 m; Detail: 1.5 m–2.5 m |
| Iris Control | Panorama: NA; Detail: Manual, auto, iris prio |
| DORI Distance | LensDetectObserveRecognizeIdentifyPanorama: 2.2 mm; Detail: 8 mm–32 mm 441.4 m( 144.36 ft) 174.3 m( 57.09 ft) 88.3 m( 28.87 ft) 44.1 m ( 14.44 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Pan: 0° to 180° not endless; Tilt: –10° to +90° |
|---|---|
| Manual Control Speed | Pan: 9°/s–170°/s; Tilt: 3°/s–160°/s |
| Preset Speed | Pan: 0°/s–200°/s; Tilt: 0°/s–120°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
Intelligence
| Face Recognition | Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. It supports up to 5 face databases, where people can be added one by one or in batches. The face similarity can also be set, and faces can be compared against 10,000 faces. |
|---|---|
| Classroom Behavior Analysis | Analyzes student behavior in classroms by detecting 7 activities: Reading and writing, standing up, hand-raising, active listening, leaning on the desk, phone usage, and turning around. It also supports attendance management. |
| Behavior Analysis in Examination Room | Analyzes student behavior in examination rooms by detecting 8 activities: Writing, hand-raising, picking up objects, turning around or looking back, standing up, placing hands under the desk and lowering the head, passing objects, and phone usage. |
Video
| Video Compression | H.265;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution | Panorama: 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240); Detail: 4M (2688 × 1520); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Panorama: Main stream: 4M/1080p/1.3M/720p@(1-25/30 fps) Sub stream 1: 1080p/1.3M/720p@ (1-25/30 fps) Sub stream 2: D1/VGA/CIF @(1-25/30 fps); Detail: Main stream: 2688×1520/4M/1080p/1.3M/720p @(1-25/30 fps) Sub stream 1: 1080p/1.3M/720p@ (1-25/30 fps) Sub stream 2: D1/VGA/CIF @(1-25/30 fps); |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–8,192 kbps H.265: 32 kbps–8,192 kbps |
| Day/Night | Panorama: Color/B/W Detail: Auto (ICR); color/B/W |
| BLC | Panorama: Yes; Detail: Yes |
| WDR | DWDR |
| HLC | Panorama: Yes; Detail: Yes |
| White Balance | Panorama: Auto; outdoor; manual; region custom; natural light; street lamp Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Panorama: Auto; manual Detail: Auto; manual |
| Noise Reduction | Panorama: 3D NR Detail: Auto: 2D NR; 3D NR |
| Region of Interest (RoI) | Yes |
| Defog | Panorama: NA Detail: Electronic |
| Digital Zoom | 16× |
| S/N Ratio | Panorama: ≥55 dB Detail: ≥55 Db |
Audio
| Audio Compression | PCM; G.711a；G.711Mu; G726; MPEG2-Layer2; G722.1; G729; G723 |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;QoS;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2);IGMP;ARP;RTCP;RTP;PPPoE;RTMP;TCP |
| Interoperability | ONVIF (Profile S & Profile G);CGI |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (up to 512 GB); FTP/SFTP; NAS |
| Browser | Web 5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions |
Certification
| Certifications | EN 50130-4 EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 62368-1 |
|---|
Port
| Audio Input | 1 channel (LINE IN, bare wire) |
|---|---|
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; preset; tour; pattern; record; alarm digital output; audio; send email |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; power exception detection |
Power
| Power Supply | 12 VDC, 3 A ± 10% (included); PoE (802.3at) |
|---|---|
| Power Consumption | Basic: 15 W; Max: 19 W (PTZ movement) |
| Power Adapter | Included |
Environment
| Operating Temperature | ﹣10 °C to +50 °C (+14 °F to +122 °F) |
|---|---|
| Operating Humidity | ≤95% |
Structure
| Casing Material | PC; ADC12 |
|---|---|
| Product Dimensions | 200 mm × 190 mm × 157 mm (7.87" × 7.48" × 6.18")（L × W × H） |
| Net Weight | 2.3 kg (5.07 lb) |
| Gross Weight | 3.1 kg (6.83 lb) |
