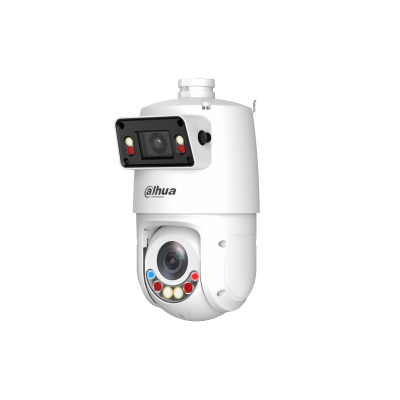

SDT4E225-4F-GB-A-PV1-S2
2+4MP 25x Smart Dual Illumination Active Deterrence X-Spans Network PTZ Camera
SDT4E225-4F-GB-A-PV1-S2 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS |
|---|---|
| Pixel | Overview channel: 4 MP; Detail channel: 2 MP |
| Max. Resolution | Overview channel: 2560 (H) × 1440 (V); Detail channel: 1920 (H) × 1080 (V) |
| Electronic Shutter Speed | Overview channel: 1/3s-1/100000s; Detail channel: 1s-1/30000s |
| Scanning System | Progressive |
| Min. Illumination | Overview channel: 0.001 [email protected] ( Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) 0 lux (illuminator on) Detail channel: 0.005 [email protected] ( Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) 0 lux (illuminator on) |
| Illumination Distance | Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (warm light) Detail channel: 100 m (328.08 ft) (IR) ; 50 m (164.04 ft) (warm light) |
| Illuminator On/Off Control | Overview channel: Auto; Manual; Off; Detail channel: Zoom Prio; Auto; Manual; Off |
| Illuminator Number | Overview channel: 2 (IR); 2 (warm light); Detail channel: 2 (IR); 2 (dual light Fusion) |
Lens
| Focal Length | Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm |
|---|---|
| Max. Aperture | Overview channel: F1.0; Detail channel: F1.6–F3.6 |
| Field of View | Overview channel: H: 101°; V: 53°; D: 120° Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Optical Zoom | Overview channel: NA Detail channel: 25× |
| Focus Control | Auto; manual; semi-auto |
| Close Focus Distance | Overview channel: 0.2 m (0.66 ft) Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft) |
| Iris Control | Overview channel: NA Detail channel: Auto; manual; iris prio |
| Iris Control Type | DC-Iris |
| DORI Distance | LensDetectObserveRecognizeIdentifyOverview channel: 2.8 mm 56.0 m( 183.72 ft) 22.4 m( 73.49 ft) 11.2 m( 36.74 ft) 5.6 m ( 18.37 ft)Detail channel: W 100.0 m( 328.08 ft) 40.0 m( 131.23 ft) 20.0 m( 65.62 ft) 10.0 m ( 32.81 ft)T 2500.0 m( 8202.00 ft) 1000.0 m( 3280.80 ft) 500.0 m( 1640.40 ft) 250.0 m ( 820.20 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Overview channel: Pan: 0°; Tilt: +12° to +24° (manual) Detail channel: Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan: 0.1°/s–200°/s Tilt: 0.1°/s–120°/s |
| Preset Speed | Pan: 240°/s Tilt: 200°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
Intelligence
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
|---|---|
| Face Detection | Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| Smart Tracking | Wiztracking;Relay Tracking |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets |
| Auto Patrol | After an IVS event occurs, the PTZ camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time. |
Active Deterrence
| Light Warning | Red-Blue light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
|---|---|
| Sound Warning | Offers 11 sound alarm and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10. |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution | Overview channel: 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Detail channel: 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Overview channel: Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) Detail channel: Main stream: 1080p/1.3M/720p@(1–50/60 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 64 kbps–10,240 kbps H265: 25 kbps–6,144 kbps |
| Day/Night | Overview channel: Auto; Color; B/W; Electronic Detail channel: Auto; Color; B/W; Electronic |
| BLC | Yes |
| WDR | Overview channel: DWDR Detail channel: 120 dB |
| HLC | Yes |
| White Balance | Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Overview channel: Auto; manual; gain prio Detail channel: Auto; manual; gain prio |
| Noise Reduction | Overview channel: 2D NR; 3D NR Detail channel: Auto: 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Overview channel: NA Detail channel: Electronic Image Stabilization (EIS) |
| Defog | Overview channel: Electronic Detail channel: Electronic |
| Digital Zoom | Overview channel: NA Detail channel: 16× |
| Image Rotation | Overview channel: NA Detail channel: 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view Multple colors and mosaic available |
| S/N Ratio | Overview channel: ≥55 dB Detail channel: ≥55 dB |
Audio
| Audio Compression | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 |
|---|---|
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
Network
| Network Port | 1 × RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS |
| Interoperability | CGI;SDK;ONVIF (Profile S & Profile G & Profile T & Profile M) |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions |
| Management Software | DMSS;DSS Pro |
| Mobile Client | iOS;Android |
Certification
| Certifications | CE: EN 50130-4 EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 62368-1 |
|---|
Port
| Audio Input | 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)） |
|---|---|
| Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)） |
| Alarm Input | 2 channels in: supports wet contact connection (max load 5 mA 3-5 VDC); supports dry contact connection |
| Alarm Output | 1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light |
| Alarm Event | Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Audio I/O | 1/1 |
Power
| Power Supply | 12 VDC(± 10%),3 A;PoE+(802.3at) |
|---|---|
| Power Consumption | Basic: 14 W Max: 25 W (illuminator + heating glass + Siren and Light Active Deterrence + ICR + PTZ) |
| Power Adapter | Optional |
Environment
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Protection | IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection |
Structure
| Casing Material | ADC12 |
|---|---|
| Product Dimensions | 160.0 mm × 184.4 mm × 304.6 mm (6.30" × 7.26" × 11.99")(L × W × H) |
| Net Weight | 3.41 kg (7.52 lb) |
