描述

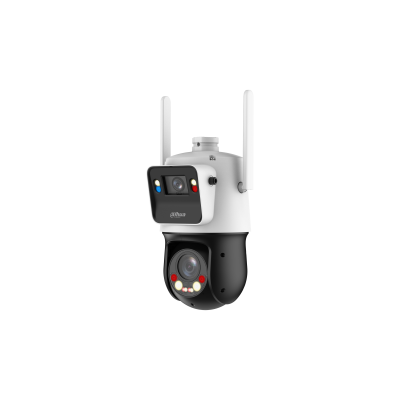

SDT4E425-4F-MB-AGQ-PV1-LA
4+4MP 25x 4G AOV TiOC Network PTZ Camera
SDT4E425-4F-MB-AGQ-PV1-LA 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | Channel 1 (Overview): 1/1.8" CMOS Channel 2 (Detail): 1/2.8" CMOS |
|---|---|
| Pixel | Channel 1 (Overview): 4 MP Channel 2 (Detail): 4 MP |
| Max. Resolution | Channel 1 (Overview): 2560 (H) × 1440 (V) Channel 2 (Detail): 2560 (H) × 1440 (V) |
| Electronic Shutter Speed | Auto/Manual 1 s–1/100,000 s |
| Scanning System | Progressive |
| Min. Illumination | Overview channel: 0.001 [email protected] (Color) Detail channel: 0.005 [email protected] (Color) 0.0005 [email protected] (B/W) 0 lux (IR on) |
| Illumination Distance | Overview channel: 30 m (98.43 ft) (Warm light) Detail channel: 100 m (328.08 ft) (IR); 100 m (328.08 ft) (Warm light) |
| Illuminator On/Off Control | Overview channel: Manual; Auto; Off Detail channel: Zoom Priority; Manual; Auto; Off |
| Illuminator Number | Overview channel: 2 (Warm light) Detail channel: 2 (Warm light) 2 (IR light) 2 (Dual light fusion) |
Lens
| Focal Length | Overview channel: 4 mm Detail channel: 5 mm–125 mm |
|---|---|
| Max. Aperture | Overview channel: F1.0 Detail channel: F1.6 |
| Field of View | Overview channel: H: 95°; V: 52.5°; D: 116° Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Optical Zoom | Detail channel: 25× |
| Focus Control | Auto; Semi-auto; Manual |
| Close Focus Distance | Overview channel: 2.5 m (8.20 ft) Detail channel: 0.5 m–5 m (1.64 ft–16.40 ft) |
| Iris Control | Detail channel: Auto; Manual; Iris Priority |
| DORI Distance | LensDetectObserveRecognizeIdentifyOverview channel: D 181.10 ft 21.8 m( 71.52 ft) 11.0 m( 36.09 ft) 5.5 m ( 18.04 ft)Detail channel: W 96 m( 314.96 ft) 37.9 m( 124.34 ft) 19.2 m( 62.99) 9.6 m ( 31.50 ft)T 2400 m( 7,874.02 ft) 948 m( 3,110.24 ft) 480 m( 1,574.80 ft) 240 m ( 787.40 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Overview channel: Pan: 0°; Tilt: 12° to 24° (Manually) Detail channel: Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan: 0.1°/s–80°/s; Tilt: 0.1°/s–80°/s |
| Preset Speed | Pan: 80°/s; Tilt: 80°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
Intelligence
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human), loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. |
|---|---|
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| Smart Tracking | Linkage Tracking; Relay Tracking; WizTracking |
| SMD | SMD 4.0 |
| Auto Patrol | After an IVS event occurs, the PTZ camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time. |
Active Deterrence
| Light Warning | Red and blue light warning Flash duration: 5 s–180 s Flash frequency: high, medium, low |
|---|---|
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms Sound: 0–100 Play times can be set from 1 to 10 |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution | Overview channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Detail channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Overview channel: Main stream: 4M (2560 × 1440)/3M (2304 × 1296)/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) Detail channel: Main stream: 4M (2560 × 1440)/3M (2304 × 1296)/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 64 kbps–10496 kbps H265: 25 kbps–6400 kbps |
| Day/Night | Overview channel: Color/B/W Detail channel: Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | Overview channel: 150 dB Detail channel: 120 dB |
| HLC | Yes |
| White Balance | Overview channel:Auto; outdoor; manual; regional custom; natural light; street lamp Detail channel:Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual; gain priority |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | Overview channel: Electronic Detail channel: Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 32 areas can be set, with up to 8 areas in the same view; multiple colors and mosaics are available |
| S/N Ratio | ≥55 dB |
Audio
| Audio Compression | PCM; G.711A; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729; G.723 |
|---|---|
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Carrier Network System | LA: 4G: FDD-LTE: B1/B2/B3/B4/B7/B8/B12/B17/B28/B66; TDD-LTE:B38/B40 |
| Wireless Carrier Frequency Band | 4G: FDD-LTE: B1/B3/B7/B8/B20/B28; TDD-LTE:B38/B40/B41; 3G: WCDMA: B1/B8 (2100/900MHz); 2G: CDMA: BC0 (800MHz); GSM: B3/B8 (1800/900MHz) |
| Max. Transmission Power | ≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz ≤23 dBm@5250–5350 MHz; ≤33 dBm@5725–5850 MHz |
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS |
| Interoperability | CGI;SDK;P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (up to 1 TB); FTP/SFTP; NAS |
| Browser | Web5.0: IE9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DMSS;DSS Pro |
| Mobile Client | iOS;Android |
Certification
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU CE-RED: Radio Equipment Directive 2014/53/EU |
|---|
Port
| Audio Input | 1 channel (LINE IN, bare wire) |
|---|---|
| Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)） |
| Alarm Input | 2 (digital input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; warning light; alarm digital output; audio; wake |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; external alarm; crossing fence; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; crowd detection; parking detection; face detection; face recognition; ANPR; SMD |
Power
| Power Supply | 12 VDC; 4 A (–10% to +25%) |
|---|---|
| Power Consumption | AOV mode (AI ISP off): 1.0 W AOV mode (AI ISP on, light off): 1.3 W AOV mode (AI ISP on, light on): 2.0 W Power saving mode: 0.6 W Performance mode (without 4G streaming; AI ISP off): 7.9 W Performance mode (without 4G streaming; AI ISP on): 10.5 W Performance mode (4G streaming; 1080p; AI ISP off): 8.5 W Performance mode (4G streaming; 1080p; AI ISP on): 11.0 W Max (AI ISP + illuminator + heating + PTZ + 4G streaming on): 32 W |
| Power Adapter | Optional |
Environment
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
Structure
| Product Dimensions | 181.42 mm × 159.93 mm × 301.60 mm (7.14" × 6.30" × 11.87") (L × W × H) |
|---|---|
| Net Weight | 3.4 kg (7.50 lb) |
| Gross Weight | 4.88 kg (10.76 lb) |
