描述

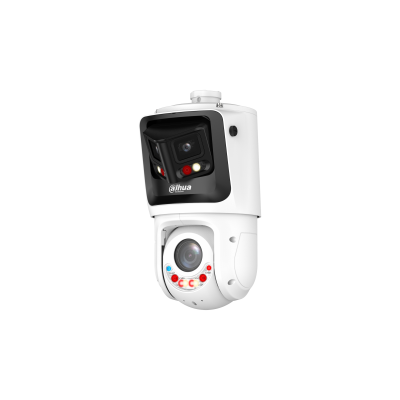

SDT4E425-8P-MB-A-PV1
8+4MP 25x TiOC Network Panoramic PTZ Camera
SDT4E425-8P-MB-A-PV1 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | Overview channel: 1/2.7" CMOS; Detail channel: 1/2.8" CMOS |
|---|---|
| Pixel | Overview channel: 8 MP; Detail channel: 4 MP |
| Max. Resolution | Overview channel: 4096 (H) × 1860 (V); Detail channel: 2560 (H) × 1440 (V) |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Overview channel: 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on) Detail channel: 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance | Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light); Detail channel: 100 m (328.08 ft) (IR); 50 m (131.23 ft) (white light) |
| Illuminator On/Off Control | Overview channel: Manual; Auto; Off Detail channel: Zoom Prio; Manual; Auto; Off |
| Illuminator Number | Overview channel: 2 (IR light); 2 (White light); Detail channel: 2 (IR light); 2 (Warm light) |
Lens
| Focal Length | Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm |
|---|---|
| Max. Aperture | Overview channel: F1.4; Detail channel: F1.6-F3.6 |
| Field of View | Overview channel: H: 180°; V: 86°; Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Optical Zoom | Overview channel: NA;Detail channel: 25× |
| Focus Control | Auto; manual; semi-auto |
| Close Focus Distance | Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33"–1.64") |
| Iris Control | Overview channel: NA; Detail channel: Auto; manual; iris prio |
| DORI Distance | LensDetectObserveRecognizeIdentifyOverview channel: 2.8 mm 56.0 m( 183.72 ft) 22.4 m( 73.49 ft) 11.2 m( 36.74 ft) 5.6 m ( 18.37 ft)Detail channel: W 100.0 m( 328.08 ft) 40.0 m( 131.23 ft) 20.0 m( 65.62 ft) 10.0 m ( 32.81 ft)T 2500.0 m( 8202.00 ft) 1000.0 m( 3280.80 ft) 500.0 m( 1640.40 ft) 250.0 m ( 820.20 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range | Overview channel: Pan: 0°; Tilt: +10° to +28° (manual) ; Detail channel: Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan: 0.1°/s–180°/s; Tilt: 0.1°/s–90°/s |
| Preset Speed | Pan: 0.1°/s–180°/s; Tilt: 0.1°/s–90°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
Intelligence
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human), loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. |
|---|---|
| Intelligence Notes | Overview channel: IVS, SMD 4.0, AcuPick; Detail channel: IVS and track, SMD 4.0, AcuPick Independent Intelligence: The panorama camera and the detail camera can run different types of intelligent functions. Linked Intelligence: For perimeter protection, the panoramic camera links with the detail camera to track objects. |
| Smart Tracking | Wiztracking;Relay Tracking |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets |
| Auto Patrol | After an IVS event occurs, the PTZ camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time. |
Active Deterrence
| Light Warning | Red-Blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
|---|---|
| Sound Warning | Offers 11 sound alarm and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10. |
Video
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution | Overview channel: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024 × 448; D1 (704 × 576/704 × 480);VGA (640 × 480);CIF (352 × 288/352 × 240); Detail channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Overview channel: Main stream: 4096 × 1860 @(1–25/30 fps) Sub stream 1: 1024 × 448/D1/VGA/CIF @(1–25/30 fps) Sub stream 2: 2048 × 928/1080p/1.3M/720p @(1–25/30 fps); Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF @(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | Overview channel: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps； Detail channel: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps; |
| Day/Night | Overview channel: Auto; Color; B/W; Electronic Detail channel: Auto; Color; B/W; Electronic |
| BLC | Yes |
| WDR | Overview channel: DWDR; Detail channel: 120 dB |
| HLC | Yes |
| White Balance | Overview channel: Auto; Indoor; Outdoor; Tracking; Manual; Sodium lamp; Natural light; Street lamp; Detail channel: Auto; Indoor; Outdoor; Tracking; Manual; Sodium lamp; Natural light; Street lamp |
| Gain Control | Overview channel: Auto; manual; gain prio Detail channel: Auto; manual; gain prio |
| Noise Reduction | Overview channel: 2D NR; 3D NR; Detail channel: Auto: 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Overview channel: NA Detail channel: Electronic Image Stabilization (EIS) |
| Defog | Overview channel: Electronic Detail channel: Electronic |
| Digital Zoom | Overview channel: NA; Detail channel: 16× |
| Image Rotation | Overview channel: NA Detail channel: 180° |
| Privacy Masking | Up to 32 areas can be set, with up to 8 areas in the same view Multiple colors and mosaic available |
| S/N Ratio | Overview channel: ≥55 dB Detail channel: ≥55 dB |
Audio
| Audio Compression | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 |
|---|---|
| Built-in Speaker | Yes |
Network
| Network Port | RJ-45 (100/1,000 Base-T) |
|---|---|
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS |
| Interoperability | CGI;SDK;P2P;ONVIF (Profile S & Profile G & Profile T & Profile M) |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions |
| Management Software | DMSS;DSS Pro |
| Mobile Client | iOS;Android |
Certification
| Certifications | CE: EN 50130-4 EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 62368-1 |
|---|
Port
| Audio Input | 1 channel (LINE IN, bare wire) |
|---|---|
| Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)） |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light |
| Alarm Event | Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
Power
| Power Supply | 12 VDC(± 10%),3 A;PoE+(802.3at) |
|---|---|
| Power Consumption | Basic: 14 W; Max: 25 W (illuminator + heating glass + Siren and Light Active Deterrence + ICR + PTZ) |
| Power Adapter | Optional |
Environment
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Protection | IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions | 194.2 mm × 160 mm × 311 mm (7.65" × 6.30" × 12.24") (L × W × H) |
|---|---|
| Net Weight | 3.1 kg (6.83 lb) |
| Gross Weight | 4.6 kg (10.14 lb) |
