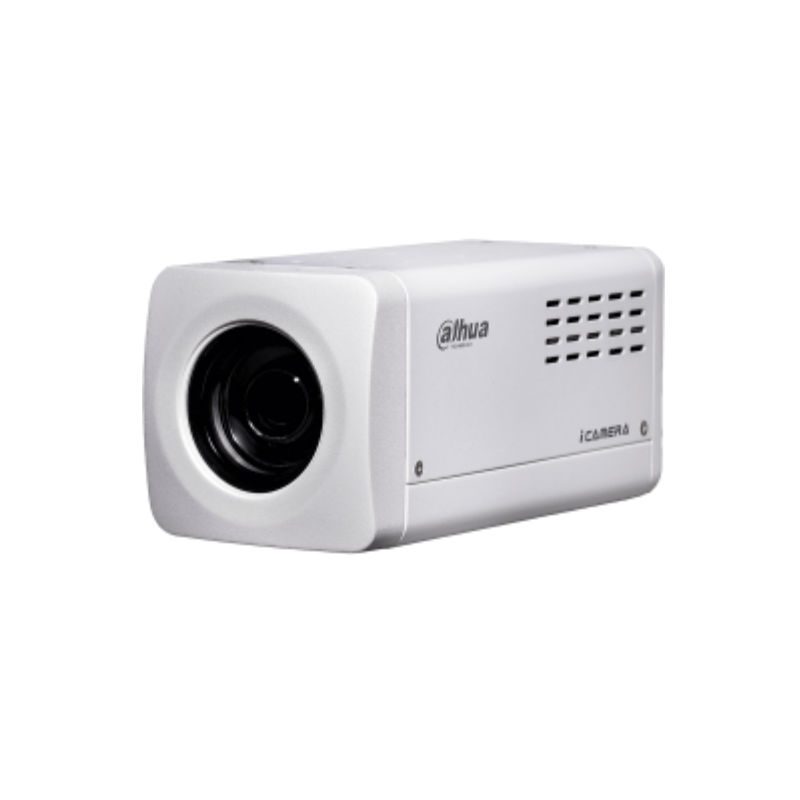

DAHUA SDZ2030S-N

2MP 30x Starlight Zoom Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Powerful 30x optical zoom
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> IVS
> Support PoE

描述

Camera

Image Sensor

1/2.8” STARVIS™ CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

512M/128M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6

S/N Ratio

More than 55dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Focal Length

4.5mm~135mm

Max. Aperture

F1.6 ~ F4.4

Angle of View

H: 67.8° ~ 2.4°

Optical Zoom

30x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

1862m(6109ft)

744m(2441ft)

372m(1220ft)

186m(610ft)

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

IVS

Tripwire, Intrusion, Abandoned/Missing

Advanced Intelligent Functions

Face Detection, Heat Map

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/1.3M/720P(1~50/60fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization (EIS)

Support

Defog

Support

Digital Zoom

16x

Audio

Compression

G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Interface

Video Interface

1 port(BNC, 1.0V[p-p], 75Ω)

RS485

1

RS232

1

Audio I/O

1/1

Alarm I/O

2/1

Electrical

Power Supply

DC12V/1.5A, PoE(802.3af)

Power Consumption

10W

Environmental

Operating Conditions

-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

Φ160mm×70mm×70mm

Net Weight

1.0kg(2.20lb)
