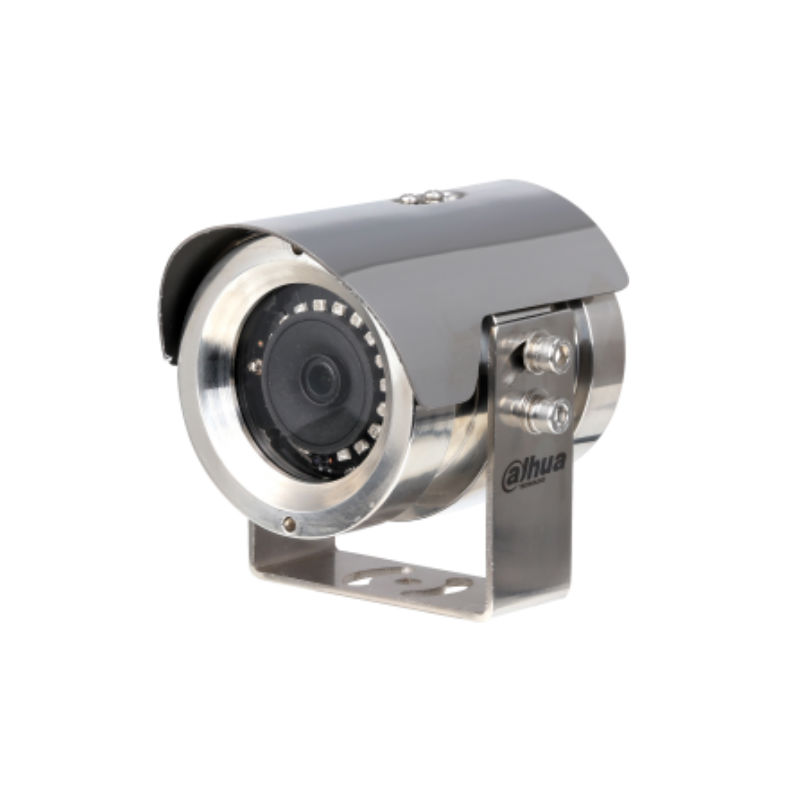

DAHUA SDZW2000T-SL

2MP Anti-corrosion IR Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> IVS
> IP68, IK10, NEMA 4X
> Material: 316L Stainless Steel
Category:

Description

Camera

Image Sensor 1/2.8” STARVIS™ CMOS
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/3s~1/100,000s
Minimum Illumination Color: 0.005Lux@F2.1; B/W: 0.0005Lux@F2.1; 0Lux@F2.1 (IR on)
S/N Ratio More than 50dB
IR Distance 30m (98ft)
IR On/Off Control Auto/Manual
IR LEDs 18

Lens

Focal Length 3.6mm / 6mm
Max. Aperture F2.1 / F2.0
Angle of View 3.6mm: H: 87°, V: 48°

6mm: H: 51°, V: 30°

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Lens Detect Observe Recognize Identify
3.6mm 55m(180ft) 22m(72ft) 11m(36ft) 6m(20ft)
6mm 81m(266ft) 33m(108ft) 16m(52ft) 8m(26ft)

Intelligence

Event Trigger Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal Access,
Auto Tracking N/A
IVS Tripwire, Intrusion, Abandoned/Missing

Video

Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main stream: 1080P/1.3M/720P(1 ~ 50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/720P/D1(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.265/H.264: 448K ~ 8192Kbps
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Motion Detection Support
Region of Interest Support
Electronic Image Stabilization (EIS) N/A
Defog N/A
Digital Zoom 16x
Flip 180°
Privacy Masking Support

Audio

Compression N/A

Network

Ethernet RJ-45 (10Base-T/100Base-TX)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage), Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android

Certifications

Certifications CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

Interface

Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm I/O N/A

Electrical

Power Supply DC12V/1.5A, PoE(802.3af)
Power Consumption 5W (IR on)

Environmental

Operating Conditions -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection IP68
Vandal Resistance IK10

Construction

Casing 316L stainless steel
Dimensions Φ152mm × 101mm × 107.5mm
Net Weight 2kg(4.41lb)
Gross Weight 2.27Kg(5.01lb)
