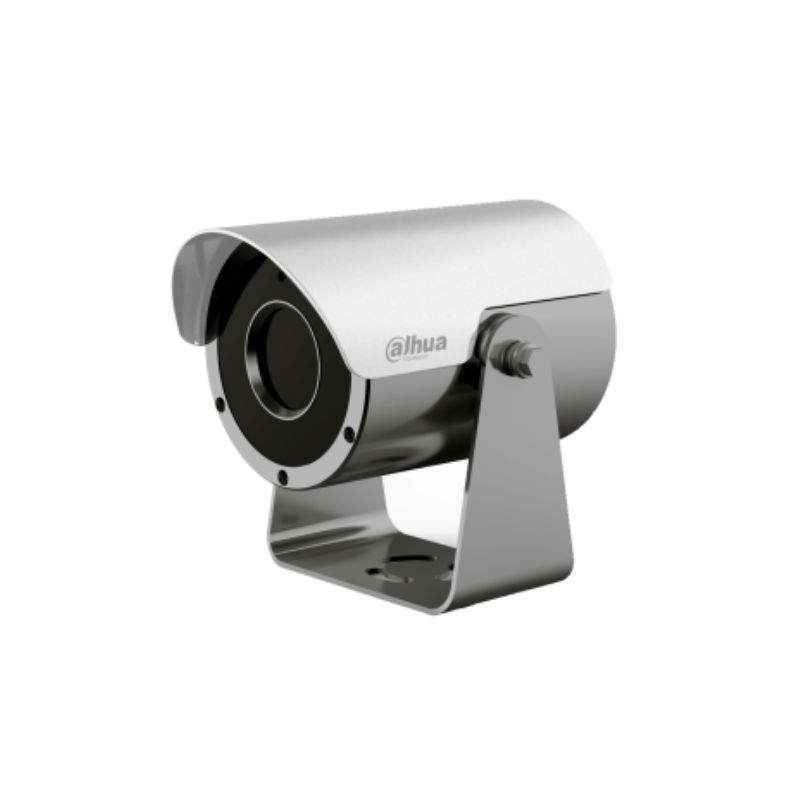

DAHUA SDZW2030U-SL

2MP 30x Anti-corrosion IR Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Powerful 30x optical zoom
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> IVS
> IP68
> Material: 316L Stainless steel
Category:

Description

Camera

Image Sensor 1/2.8” STARVIS™ CMOS
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
RAM/ROM 512M/128M
Scanning System Progressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination Color: 0.005Lux@F1.6; CB/W 0.0005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio More than 55dB
IR Distance Distance up to 100m (328ft)
IR On/Off Control Auto/Manual
IR LEDs 5

Lens

Focal Length 4.5mm~135mm
Max. Aperture F1.6 ~ F4.4
Angle of View H: 67.8° ~ 2.4°
Optical Zoom 30x
Focus Control Auto/Manual
Close Focus Distance 100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect Obverse Recognize Identify
1862m(6109ft) 744m(2441ft) 372m(1220ft) 186m(610ft)

Intelligence

Auto Tracking N/A
IVS Tripwire, Intrusion,Abandoned/Missing
Advanced Intelligent Functions Face Detection, Heat Map

Video

Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main stream: 1080P/1.3M/720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/1.3M/720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.265/H.264: 448K ~ 8192Kbps
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Motion Detection Support
Region of Interest Support
Electronic Image Stabilization (EIS) Support
Defog Support
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas

Audio

Compression G.711a/G.711Mu/AAC/G.722 /G.726/G.729/MPEG2-L2

Network

Ethernet RJ-45 (10Base-T/100Base-TX)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android

Certifications

Certifications CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

Interface

Video Interface 1 port(BNC, 1.0V[p-p], 75Ω)
RS485 1
Audio I/O 1/1
Alarm I/O 2/2

Electrical

Power Supply AC24V(optional)/DC12V(optional)/PoE+(802.3at)
Power Consumption 10W, 25W (Heater on, IR on)

Environmental

Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP68
Vandal Resistance N/A

Construction

Casing 316L stainless steel
Dimensions Φ180mm×193mm×201.5mm
Net Weight 6.0kg(13.2lb)
Gross Weight 7.3Kg(16.09lb)
