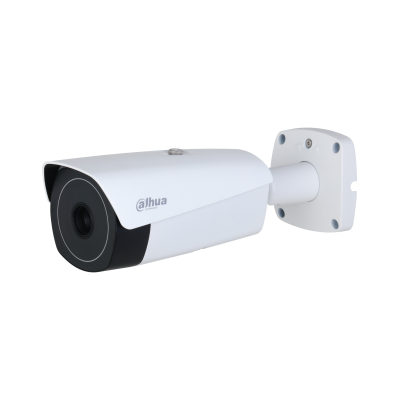

TPC-BF5401
Thermal Network Bullet Camera
TPC-BF5401 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Thermal
| Detector Type |
Vanadium oxide uncooled focal plane detector |
| Effective Pixels |
400 (H) × 300 (V) |
| Pixel Pitch |
17 μm |
| Spectral Range |
8 μm–14 μm |
| Sensitivity (NETD) |
≤35 mK (@f/1.0) |
| Focus Control |
Fixed-focal |
| Aperture |
F1.0 |
| Focal Length |
7.5 mm; 13 mm; 25 mm; 35 mm |
| Field of View |
7.5mm:H:53.5°; V:39.5° 13 mm: H:30.4°; V: 22.5° 25 mm: H:15.5°; V:11.6° 35 mm: H:11.1°; V:8.3° |
| Close Focus Distance |
7.5 mm: 1 m (3.28 ft) 13 mm: 3 m (9.84 ft) 25 mm: 10 m (32.81 ft) 35 mm: 20 m (65.62 ft) |
| Digital Detail Enhancement (DDE) |
Yes |
| Thermal AGC |
Auto/Manual |
| Thermal Noise Reduction |
2D NR/3D NR |
| Image Flip |
180° |
| Color Palettes |
18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
Audio and Video
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG |
| Resolution |
Thermal: Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 400 × 300; 1280 × 960 (default) Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300 (default) |
| Video Frame Rate |
Thermal (50 Hz): Main stream: 1 fps–50 fps, 25 fps by default Sub stream: 1 fps–50 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–60 fps,30 fps by default Sub stream: 1 fps–60 fps, 15 fps by default |
| Audio Compression |
G.711a; G.711mu; AAC; PCM |
| Image Encoding Format |
JPEG |
Function
| Network Protocol |
HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Storage |
FTP; Micro SD card (optional) |
| Interoperability |
ONVIF; CGI; DaHua SDK |
| Browser |
IE; Firefox; Chrome |
| User/Host |
Up to 20 (total bandwidth: 64 MB) |
| Security |
Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| User Management |
Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection |
Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Micro SD Card (Max.) |
512 GB |
| Heat Detection |
Yes |
| Cold/Hot Spot Trace |
Yes |
| Perimeter Protection |
Yes. Supports tripwire and intrusion. |
| Target Distinction |
Human/Vehicle Classification |
Port
| Analog Output |
1 × CVBS output; BNC port |
| Network Port |
1 × RJ-45 (10/100 Base-T) |
| Alarm Input |
2 |
| Alarm Output |
2 |
| Audio Input |
1 |
| Audio Output |
1 |
| RS-485 |
1 |
Power
| Power Supply |
12 VDC ± 20%, PoE (802.3af), ePoE |
| Power Consumption |
Basic: 5.0 W (12 VDC); 5.5 W (PoE) Max.: 13 W (heater on ,12 VDC); 14 W (heater on, PoE) |
| ePoE |
Yes |
Environment
| Operating Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
| Operating Humidity |
≤95% |
| Storage Temperature |
–30 °C to +70 °C (–40 °F to +158 °F) |
Physical Characteristics
| Protection |
IP67 |
| Reliability |
Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
Structure
| Product Dimensions |
291 mm × 103 mm × 97 mm (11.46" × 4.06" × 3.82") (L × W × H) |
| Packaging Dimensions |
Package: 365 mm × 175 mm × 176 mm (14.37" × 6.89" × 6.93") (L × W × H) Protection box: 902 mm × 380 mm × 380 mm (35.51" × 14.96" × 14.96") (L × W × H) |
| Net Weight |
≤1.4 kg (3.09 lb) |
| Gross Weight |
≤1.9 kg (4.19 lb) |
| Bracket |
Included |
| Certifications |
CE; FCC |
Heat Detection Distance
| Focal Length |
Max. Distance |
| 7.5 mm |
75 m (246.06 ft) |
| 13 mm |
128 m (419.94 ft) |
| 25 mm |
250 m (820.20 ft) |
| 35 mm |
350 m (1148.28 ft) |
Note: The table displays the measured distances obtained from using the target size 0.2 m × 0.2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.
Perimeter Protection Distance (IVS Distance)
Note: The table displays the measured distances obtained from using the target sizes 1.8 m × 0.5 m (human) and 1.4 m × 4 m (vehicle) for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.
