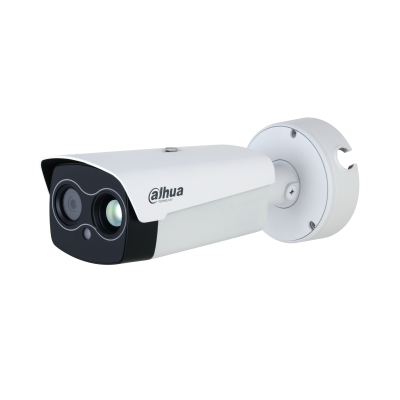

TPC-BF5441-V1
Thermal Network Hybrid Bullet Camera
TPC-BF5441-V1 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Technical Specification
Thermal
| Detector Type |
Vanadium oxide uncooled focal plane detector |
| Effective Pixels |
400 (H) × 300 (V) |
| Pixel Pitch |
12 μm |
| Spectral Range |
8 μm–14 μm |
| Sensitivity (NETD) |
≤20 mK (@f/1.0) |
| Field of View |
7.5 mm: H: 51.8°; V: 38.8° 13 mm: H: 21.0°; V: 16.0° 19 mm: H: 14.5°; V: 10.9° 25 mm: H: 10.9°; V: 8.2° 35 mm: H: 7.8°; V: 5.8° 50 mm: H: 5.5°; V: 4.1° |
| Thermal Focus Control |
Fixed-focal |
| Close Focus Distance |
7.5 mm: 1.2 m (3.94 ft) 13 mm: 4 m (13.12 ft) 19 mm: 8 m (26.25 ft) 25 mm: 15 m (49.21 ft) 35 mm: 28 m (91.86 ft) 50 mm: 55 m (180.45 ft) |
| Digital Detail Enhancement (DDE) |
Yes |
| Digital Zoom |
24 levels |
| Thermal AGC |
Auto/Manual |
| Thermal Noise Reduction |
2D NR/3D NR |
| Image Flip |
180°; Mirror |
| Color Palettes |
18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Image Sensor |
1/1.8" CMOS |
| Max. Resolution |
2688 (H) × 1520 (V) |
| Pixel |
4 MP |
| Horizontal Definition |
Center ≥ 1200 TVL Edge ≥ 900 TVL |
| Min. Illumination |
Color: 0.01 lux Black & white: 0.001 lux 0 lux (IR on) |
| Visible AGC |
Auto/Manual |
| Visible Noise Reduction |
2D NR/3D NR |
| S/N Ratio |
>55 dB |
| White Balance |
Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog |
Electronic defog |
| Electronic Shutter Speed |
1 s–1/30,000 s (auto/manual) |
| BLC |
Yes |
| WDR |
DWDR |
| HLC |
Yes |
| Day/Night |
Auto (ICR); Color; B/W |
| Iris Control |
Manual/Auto |
| Image Flip |
180°; Mirror |
| Field of View |
4 mm: H: 87.0°; V: 47.3° 6 mm: H: 55.3°; V: 30.0° 12 mm: H:37.3°; V: 21.4° 10 mm-30 mm: H: 42°–15°;V: 22.8°–8.4° |
| Close Focus Distance |
4 mm: 1.2 m (3.94 ft) 6 mm: 2.5 m (8.20 ft) 12 mm: 7.4 m (24.28 ft) 10 mm-30 mm: 9 m (29.53 ft) |
| Aperture |
4 mm: F1.6 6 mm: F1.6 12 mm: F1.7 10 mm-30 mm: F1.7 |
| Illuminator On/Off Control |
Auto; manual |
| Illumination Distance |
80 m (262.47 ft) |
Audio and Video
| Video Compression |
H.265; H.264M; H.264H; H.264B |
| Resolution |
Thermal: Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 640 × 512; 1280 × 960 (default); Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300 (default) Visible: Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default); Sub stream: 704 × 576; 352 × 288; 704 × 576 (default) |
| Video Frame Rate |
Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression |
G.711a; G.711mu; PCM; AAC |
| Image Encoding Format |
JPEG |
Function
| Two-way Audio |
Yes |
| Sound and Light Alarm |
Yes |
| Network Protocol |
HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Region of Interest (RoI) |
Yes |
| Storage |
FTP; Micro SD card (optional) |
| Interoperability |
ONVIF; CGI; DaHua SDK |
| Browser |
IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier |
| User/Host |
Up to 12 (total bandwidth: 64 MB) |
| Security |
Authorized username and password; attached MAC address; HTTPS; IEEE 802.1x; controlled network access |
| User Management |
Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection |
Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Fusion Mode |
Yes |
| PIP |
Yes |
| Micro SD Card (Max.) |
512 GB |
| Heat (Fire) Detection |
Yes |
| Cold/Hot Spot Trace |
Yes |
| IVS (Perimeter Protection) |
Yes. Supports tripwire and intrusion. |
| Target Distinction |
Human/Vehicle Classification |
| Target Filtering |
Yes (by pixel) |
Port
| Analog Output |
1 × CVBS output; BNC port |
| Network Port |
1 × RJ-45 (10/100 Base-T) |
| Alarm Input |
2 |
| Alarm Output |
2 |
| Alarm Linkage |
Recordings on SD card; digital output; email; snapshot |
| Alarm Event |
No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection |
| Audio Input |
1 |
| Audio Output |
1 |
| RS-485 |
1 |
Power
| Power Supply |
12-24 VDC (±10%), PoE (802.3af) |
| Power Consumption |
Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on) |
| ePoE |
Yes |
Environment
| Operating Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity |
≤95% |
| Storage Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
Physical Characteristics
| Protection |
IP67 |
| Product Dimensions |
300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H) |
| Packaging Dimensions |
423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H) |
| Net Weight |
≤2.35 kg (5.18 lb) |
| Gross Weight |
≤2.7 kg (5.95 lb) |
| Lens |
Included |
| Reliability |
Surge protection: 6 kV Contact discharge: 8 kV Air discharge: 15 kV |
| Vandal-proof Rating |
Enclosure: IK10 |
| Anti-corrosion Level |
Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Certifications |
CE |
Heat (Fire) Detection Distance
| Focal Length |
Max. Distance |
| 7.5 mm |
92 m (301.84 ft) |
| 13 mm |
156 m (511.81 ft) |
| 19 mm |
230 m (754.59 ft) |
| 25 mm |
300 m (984.25 ft) |
| 35 mm |
420 m (1,377.95 ft) |
| 50 mm |
600 m (1,968.50 ft) |
Note: The table displays the measured distances obtained from using the target size 0.2 m × 0.2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. Supports up to 16 fire points detectable.
Perimeter Protection Distance (IVS Distance)
| Focal Length |
Distance (Human) |
Note: The table displays the optimal distance obtained from using the target sizes 1.8 m × 0.5 m (human) and 4 m × 1.4 m (vehicle) for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. General: For the short range scene, select general mode, which is better for the classification of human, vehicles, and small targets. High Sensitivity: In scene of perimeter detection, when the scene needs to be detected at a distance of 10 times, select the high sensitivity mode.
