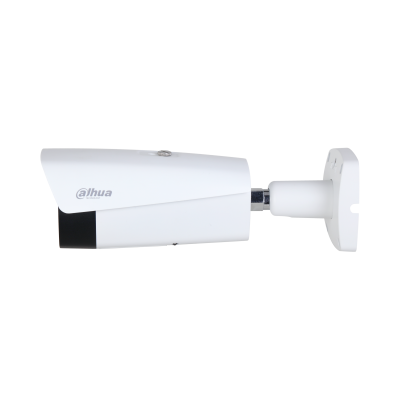

TPC-BF5601
Thermal Network Bullet Camera
TPC-BF5601 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Thermal Camera
| Detector Type | Vanadium oxide uncooled focal plane detector |
|---|---|
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Size | 17 μm |
| Thermal Sensitivity (NETD) | 40 mK |
| Spectral Range | 8 μm–14 μm |
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
Thermal Lens
| Lens Type | Fixed/F1.0 |
|---|---|
| Focus Control | Athermalized, Focus-free |
| Focal Length | 7.5 mm; 13 mm; 25 mm; 35 mm |
| Angle of View | 7.5 mm: H: 91.2°; V: 70.3° 13 mm: H: 48.9°; V: 38.8° 25 mm:H: 24.6°; V: 19.8° 35 mm:H: 17.6°; V: 14.1° |
Video
| Compression | H.265; H.264; MJPEG |
|---|---|
| Frame Rate | Main Stream: Thermal: 1280 × 1024; 720p; 640 × 512@25/30 fps Sub Stream: Thermal: 640 × 512; 320 × 256@25/30 fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 640–8192 Kbps |
| Motion Detection | Off/On (4 zone, Rectangle) |
| Region of Interest | Off/On (4 zone) |
| Digital Zoom | 4 × (24 levels) |
| Flip | 180° |
| Mirror | Off/On |
| Privacy Masking | Off/On (4 area, Rectangle) |
Audio
| Compression | G.711A; G.711Mu; AAC; PCM |
|---|
Intelligence
| IVS | Tripwire, Intrusion |
|---|---|
| Advanced Intelligent Functions | Heat detection & alarm, Cold/Hot spot trace, Human/Vehicle classification |
Network
| Ethernet | RJ-45 |
|---|---|
| Protocol | IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
| Interoperability | ONVIF Profile S & G, API |
| Streaming Method | Unicast/Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | Micro SD (256GB) Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording |
| Web Viewer | >IE8; |
| Management Software | SmartPSS; DSS |
| Smart Phone | Android; iOS |
Certifications
| Certification | CE (EN 60950: 2000); FCC (FCC Part 15 SubpartB ) |
|---|
Port
| Video Interface | 1 Port (CVBS/BNC) |
|---|---|
| Audio Interface | 1/1 In/Out |
| RS485 | Yes |
| Alarm | 2/2 In/Out |
Electrical
| Power Supply | 12 VDC/PoE/ePoE |
|---|---|
| Power Consumption | Max. 13 W |
Environmental
| Operating Condition | –40°C to +70°C (–40°F to +158°F)/Less than 95% RH * Start up should be done at above -40°C (-40°F) |
|---|---|
| Storage Conditions | –40°C to +70°C (–40°F to +158°F)/Less than 95% RH |
| Ingress Protection | IP67 |
Construction
| Casing | Metal |
|---|---|
| Dimensions | 291 mm × 103 mm × 97 mm (11.46" × 4.06" × 3.82") (L × W × H) |
| Net Weight | 1.5 Kg (3.31 lb) |
| Gross Weight | 1.9 Kg (4.19 lb) |
