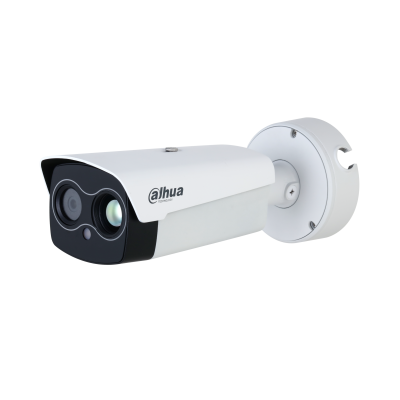

TPC-BF5641-V1
Thermal Network Hybrid Bullet Camera
TPC-BF5641-V1 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Technical Specification
Thermal
| Detector Type |
Vanadium oxide uncooled focal plane detector |
| Effective Pixels |
640 (H) × 512 (V) |
| Pixel Pitch |
12 μm |
| Spectral Range |
8 μm–14 μm |
| Sensitivity (NETD) |
≤20 mK (@f/1.0) |
| Field of View |
5 mm: H: 90.0°: V: 70.7° 9 mm: H: 50.0°: V: 39.6° 13 mm: H: 32.0°: V: 25.7° 19 mm: H: 22.9°: V: 18.4° 25 mm: H: 17.6°: V: 14.1° 35 mm: H: 11.1°; V: 8.3° 50 mm: H: 8.8°; V: 7.0° |
| Thermal Focus Control |
Fixed-focal |
| Close Focus Distance |
5 mm: 0.6 m (1.97 ft) 9 mm: 1.8 m (5.91 ft) 13 mm: 4 m (13.12ft) 19 mm: 8 m (26.25 ft) 25 mm: 15 m (49.21 ft) 35 mm: 28 m (91.86ft) 50 mm: 55 m (180.45 ft) |
| Digital Detail Enhancement (DDE) |
Yes |
| Digital Zoom |
24 levels |
| Thermal AGC |
Auto/Manual |
| Thermal Noise Reduction |
2D NR/3D NR |
| Image Flip |
180°; Mirror |
| Color Palettes |
18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Image Sensor |
1/1.8" CMOS |
| Max. Resolution |
2688 (H) × 1520 (V) |
| Pixel |
4 MP |
| Horizontal Definition |
Center ≥ 1200 TVL Edge ≥ 900 TVL |
| Min. Illumination |
Color: 0.01 lux Black & white: 0.001 lux 0 lux (IR on) |
| Visible AGC |
Auto/Manual |
| Visible Noise Reduction |
2D NR/3D NR |
| S/N Ratio |
>55 dB |
| White Balance |
Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog |
Electronic defog |
| Electronic Shutter Speed |
1 s–1/30,000 s (auto/manual) |
| BLC |
Yes |
| WDR |
DWDR |
| HLC |
Yes |
| Day/Night |
Auto (ICR); Color; B/W |
| Iris Control |
Manual/Auto |
| Image Flip |
180°; Mirror |
| Field of View |
4 mm: H: 87.0°; V: 47.3° 6 mm: H: 55.3°; V: 30.0° 12 mm: H:37.3°; V: 21.4° 10 mm-30 mm: H: 42°–15°;V: 22.8°–8.4° |
| Close Focus Distance |
4 mm: 1.2 m (3.94 ft) 6 mm: 2.5 m (8.20 ft) 12 mm: 7.4 m (24.28 ft) 10 mm-30 mm: 9 m (29.53 ft) |
| Aperture |
4 mm: F1.6 6 mm: F1.6 12 mm: F1.7 10 mm-30 mm: F1.7 |
| Illuminator On/Off Control |
Auto; manual |
| Illumination Distance |
80 m (262.47 ft) |
Audio and Video
| Video Compression |
H.265; H.264M; H.264H; H.264B |
| Resolution |
Thermal: Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default); Sub stream: 640 × 512; 320 × 256; 640 × 512 (default) Visible: Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default); Sub stream: 704 × 576; 352 × 288; 352 × 288 (default) |
| Video Frame Rate |
Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression |
G.711a; G.711mu; PCM; AAC |
| Image Encoding Format |
JPEG |
Function
| Two-way Audio |
Yes |
| Sound and Light Alarm |
Yes |
| Network Protocol |
HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Region of Interest (RoI) |
Yes |
| Storage |
FTP; Micro SD card (optional) |
| Interoperability |
ONVIF; CGI; DaHua SDK |
| Browser |
IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier |
| User/Host |
Up to 12 (total bandwidth: 64 MB) |
| Security |
Authorized username and password; attached MAC address; HTTPS; IEEE 802.1x; controlled network access |
| User Management |
Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection |
Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Fusion Mode |
Yes |
| PIP |
Yes |
| Micro SD Card (Max.) |
512 GB |
| Heat (Fire) Detection |
Yes |
| Cold/Hot Spot Trace |
Yes |
| IVS (Perimeter Protection) |
Yes. Supports tripwire and intrusion. |
| Target Distinction |
Human/Vehicle Classification |
| Target Filtering |
Yes (by pixel) |
Port
| Analog Output |
1 × CVBS output; BNC port |
| Network Port |
1 × RJ-45 (10/100 Base-T) |
| Alarm Input |
2 |
| Alarm Output |
2 |
| Alarm Linkage |
Recordings on SD card; digital output; email; snapshot |
| Alarm Event |
No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection |
| Audio Input |
1 |
| Audio Output |
1 |
| RS-485 |
1 |
Power
| Power Supply |
12-24 VDC (±10%), PoE (802.3af) |
| Power Consumption |
Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on) |
| ePoE |
Yes |
Environment
| Operating Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity |
≤95% |
| Storage Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
Physical Characteristics
| Protection |
IP67 |
| Product Dimensions |
300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H) |
| Packaging Dimensions |
423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H) |
| Net Weight |
≤2.35 kg (5.18 lb) |
| Gross Weight |
≤2.7 kg (5.95 lb) |
| Lens |
Included |
| Reliability |
Surge protection: 6 kV Contact discharge: 8 kV Air discharge: 15 kV |
| Vandal-proof Rating |
Enclosure: IK10 |
| Anti-corrosion Level |
Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Certifications |
CE |
Heat (Fire) Detection Distance
| Focal Length |
Max. Distance |
| 5 mm |
61 m (200.13 ft) |
| 9 mm |
110 m (360.89 ft) |
| 13 mm |
156 m (511.81 ft) |
| 19 mm |
230 m (754.59 ft) |
| 25 mm |
300 m (984.25 ft) |
| 35 mm |
420 m (1,377.95 ft) |
| 50 mm |
600 m (1,968.50 ft) |
Note: The table displays the measured distances obtained from using the target size 0.2 m × 0.2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.
Perimeter Protection Distance (IVS Distance)
| Focal Length |
Distance (Human) |
Note: The table displays the optimal distance obtained from using the target sizes 1.8 m × 0.5 m (human) and 4 m × 1.4 m (vehicle) for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. General: For the short range scene, select general mode, which is better for the classification of human, vehicles, and small targets. High Sensitivity: In scene of perimeter detection, when the scene needs to be detected at a distance of 10 times, select the high sensitivity mode.
