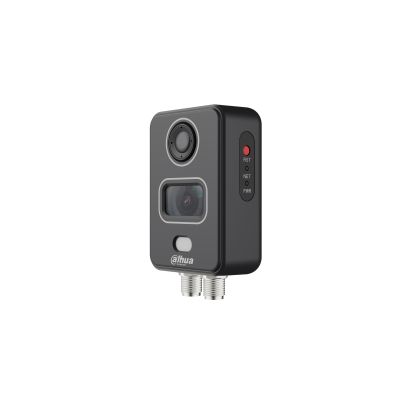

TPC-KF2241-T
Dahua Thermal Network Hybrid Compact Camera
TPC-KF2241-T 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Thermal
| Detector Type | Vanadium oxide uncooled focal plane detector |
|---|---|
| Effective Pixels | 256 (H) × 192 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤50 mK@f/1.0 |
| Focal Length | 1.9 mm |
| Field of View | H: 110°; V: 74° |
| Thermal Focus Control | Fixed-focal |
| Close Focus Distance | 0.15 m (0.49 ft) |
| Aperture | F1.0 |
| Digital Detail Enhancement (DDE) | Yes |
| Thermal AGC | Auto; Manual |
| Thermal Noise Reduction | 2D NR; 3D NR |
| Image Flip | Mirror/180° |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Temperature Measurement Range | Low temperature mode: –20 °C to +150 °C (–4 °F to +302 °F) High temperature mode: 0 °C to +550 °C (+32 °F to +1022 °F) Auto mode |
| Minimum measurement distance | 0.1 m (0.33 ft) (target sizes 0.1 m x 0.1 m) |
| Maximum measurement distance | 1.5 m (4.92 ft) (target sizes 0.1 m x 0.1 m) |
| Temperature Measurement Accuracy | Max. (±2 °C, ±2%) Operating temperature: –20 °C to +60 °C (–4 °F to +140 °F) |
| Temperature Measurement Mode | Spot: 12 Line: 12 Area: 12 Supports 12 rules simultaneously |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2336 (H) × 1752(V) |
| Pixel | 4 MP |
| Horizontal Definition | Center ≥150 TVL Edge ≥100 TVL |
| Min. Illumination | Color: 0.01 lux B/W: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto; manual |
| Visible Noise Reduction | 2D NR; 3D NR |
| S/N Ratio | >55 dB |
| White Balance | Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| Day/Night | Color; B/W |
| Image Flip | 180° |
| Focal Length | 2.2 mm |
| Field of View | H: 120°; V: 88.4° |
| Close Focus Distance | 0.5 m (1.64 ft) |
| Aperture | F2.0 |
| Illuminator On/Off Control | Auto; Manual |
| Illumination Distance | 4 m (13.12 ft) |
Audio and Video
| Video Compression | H.265; H.264; H.264H; H.264B;M-JPEG |
|---|---|
| Resolution | Thermal: Main stream: 1280 × 960; 1280 × 768; 640 × 480; 256 × 192; 1280 × 960 (default); Sub stream: 640 × 480; 256 × 192; 256 × 192 (default) Visible: Main stream: 2336 × 1752; 1920 × 1080; 1280 × 720; 704 × 576; 2336 × 1752 (default); Sub stream: 704 × 576; 352 × 288; 352 × 288 (default) |
| Video Frame Rate | Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default; Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default; Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default; Sub stream: 1 fps–30 fps, 15 fps by default; Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default; Sub stream: 1 fps–30 fps, 15 fps by default |
| Image Encoding Format | JPEG |
Function
| Sound and Light Alarm | White light alarm prompts |
|---|---|
| Network Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP |
| Region of Interest (RoI) | Yes |
| Regional Focus | Yes |
| Interoperability | CGI |
| Browser | IE: IE8 and later (includes the browsers with IE kernel, such as 360 Explorer, Sougou Explorer) Chrome: 42 and earlier Firefox: 42 and earlier |
| User/Host | Up to 6 (total bandwidth: 64 MB) |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| User Management | Up to 6 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection |
| Fusion Mode | Yes. Disabled by default. |
| PIP | Yes |
Intelligence
| Heat Detection | Yes |
|---|---|
| Cold/Hot Spot Trace | Yes |
Port
| Network Port | 1 × RJ-45 (10/100 Base-T) |
|---|---|
| Alarm Input | 1 |
| Alarm Output | 1 |
| RS-485 | 1 |
Power
| Power Supply | 12 VDC ± 20%; PoE (802.3af) |
|---|---|
| Power Consumption | Basic: |
Environment
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
Physical Characteristics
| Protection | IP67 |
|---|---|
| Reliability | Surge protection: 6 kV Contact discharge of 8 kV Air discharge of 15 kV |
Structure
| Product Dimensions | 113.6 mm × 62.0 mm × 40.6 mm (4.47" × 2.44" × 1.60") (L × W × H) |
|---|---|
| Packaging Dimensions | 239 mm × 110 mm × 71 mm (9.41" × 4.33" × 2.80") (L × W × H) |
| Net Weight | ≤0.5 kg (1.10 lb) |
| Gross Weight | ≤0.6 kg (1.32 lb) |
| Lens | Included |
| Bracket | Included: RKN010-02-magnetic bracket assembly Optional: DH-PFB110W-small wall mount-DH816W2 |
