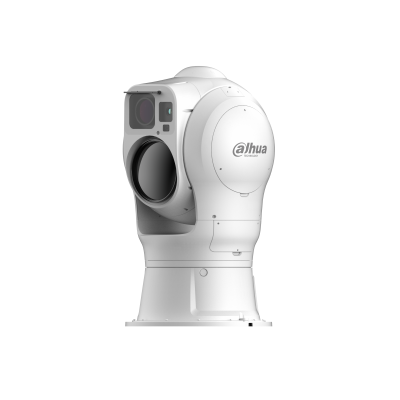

TPC-PTD8A4C
Multi-Spectral Surveillance System
TPC-PTD8A4C 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Technical Specification
Thermal
| Detector Type |
Vanadium oxide uncooled focal plane detector |
| Effective Pixels |
1280 (H) × 1024 (V) |
| Pixel Pitch |
12 μm |
| Spectral Range |
8 μm–14 μm |
| Focal Length |
23 mm–230 mm; 30 mm–300 mm |
| Field of View |
23 mm–230 mm: H: 36.93°–3.82°; V: 29.91°–3.06° 30 mm–300 mm: H: 28.72°–2.93°; V: 23.15°–2.35° |
| Thermal Focus Control |
Manual/Auto/Semi-auto |
| Close Focus Distance |
23 mm–230 mm: 4 m (13.12 ft) 30 mm–300 mm: 5 m (16.40 ft) |
| Digital Detail Enhancement (DDE) |
Yes |
| Thermal Image Stabilization |
Electronic Image Stabilization (EIS) |
| Digital Zoom |
24 levels |
| Thermal AGC |
Auto/Manual |
| Thermal Noise Reduction |
2D NR/3D NR |
| Image Flip |
180° |
| Color Palettes |
18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
Visible
| Image Sensor |
Channel 1: 1/1.8" CMOS Channel 2: 1/1.8" CMOS |
| Max. Resolution |
Channel 1: 2688 (H) × 1520 (V) Channel 2: 3840 (H) × 2160 (V) |
| Pixel |
Channel 1: 4 MP Channel 2: 8 MP |
| Horizontal Definition |
Z86: Center ≥ 1200 TVL Edge ≥ 900 TVL Z120: Center ≥ 1100 TVL Edge ≥ 900 TVL |
| Min. Illumination |
Z86: Channel 1: Color: 0.002 [email protected]; Black & white: 0.002 [email protected]; 0 lux (IR on) Channel 2: Color: 0.001 [email protected]; Black & white: 0.0001 [email protected] Z120: Channel 1: Color: 0.05 [email protected]; Black & white: 0.005 [email protected]; 0 lux (IR on); Channel 2: Color: 0.001 [email protected]; Black & white: 0.0001 [email protected]; 0 lux (IR on) |
| Visible AGC |
Auto/Manual |
| Visible Noise Reduction |
2D NR/3D NR |
| S/N Ratio |
>55 dB |
| White Balance |
Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog |
Channel 1: electronic defog/optical defog Channel 2: NA |
| Visible Image Stabilization |
Channel 1: Electronic Image Stabilization (EIS)/Optical Image Stabilization (OIS) Channel 2: NA |
| Electronic Shutter Speed |
1 s–1/30,000 s (auto/manual) |
| BLC |
Yes |
| WDR |
Yes |
| HLC |
Yes |
| Day/Night |
Auto (ICR); Color; B/W |
| Iris Control |
Manual/Auto |
| Image Flip |
180° |
| Exposure Compensation |
Yes |
| Visible Focus Control |
Auto/Semi-auto/Manual |
| Focal Length |
Z86: Channel 1: 10 mm–860 mm Channel 2: 6 mm Z120: Channel 1: 10 mm–1200 mm Channel 2: 6 mm |
| Field of View |
Z86: Channel 1: H: 20.8°–0.41°; V: 11.9°–0.23° Channel 2: H: 56.8°; V: 29.9° Z120: Channel 1: H: 22.06°–0.37°; V: 12.58°–0.21°; Channel 2: H: 56.8°; V: 29.9° |
| Close Focus Distance |
Z86: Channel 1: 1 m–10 m (3.28 ft–32.81 ft) Channel 2: 3 m (9.84 ft) Z120: Channel 1: 1 m–50 m (3.28 ft–164.04 ft); Channel 2: 3 m (9.84 ft) |
| Optical Zoom |
Z86: Channel 1: 86× Channel 2: NA Z120: Channel 1: 120× Channel 2: NA |
| Aperture |
Z86: Channel 1: F2.8–F8.2 Channel 2: F1.0 Z120: Channel 1: F2.92–F11.37 Channel 2: F1.0 |
| Video Compression |
H.265; H.264M; H.264H |
| Resolution |
Thermal: Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default) Sub stream: 640 × 512; 320 × 256; 640 × 512 (default) Visible (Channel 1): Main stream: 2688 × 1520; 1920 × 1080; 1280 × 960; 1280 × 720; 2688 × 1520 (default) Sub stream: 704 × 576; 640 × 480; 352 × 288; 704 × 576 (default) Visible (Channel 2): Main stream: 3840 × 2160; 2688 × 1520; 1920 × 1080; 1280 × 960; 1280 × 720; 2688 × 1520 (default) Sub stream: 704 × 576; 640 × 480; 352 × 288; 704 × 576 (default) |
| Video Frame Rate |
Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 25 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 25 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression |
G.711a; G.711mu; PCM |
| Image Encoding Format |
JPEG |
PTZ
| Pan/Tilt Range |
Pan: 0° to 360° endless Tilt: –45° to +85° |
| Manual Control Speed |
Pan: 0.01°/s–120°/s Tilt: 0.01°/s–80°/s |
| Preset Speed |
Pan: 0.01°/s–120°/s Tilt: 0.01°/s–80°/s |
| Preset |
300 |
| Tour |
8 (up to 32 presets per tour) |
| Pattern |
5 |
| Scan |
5 |
| Power-off Memory |
Yes |
| Privacy Masking |
4 blocks |
| Idle Motion |
Preset; pattern; tour; scan; pan |
Function
| Two-way Audio |
Yes |
| Network Protocol |
HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;UPnP; NTP; Multicast; SFTP; 802.1x |
| Region of Interest (RoI) |
Yes |
| Storage |
FTP; Micro SD card (128 G) |
| Micro SD Card (Max.) |
512 GB |
| Interoperability |
ONVIF; CGI; Dahua SDK |
| Browser |
IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer) Chrome: 42 and earlier Firefox: 42 and earlier |
| User/Host |
Up to 12 (total bandwidth: 64 MB) |
| Security |
Authorized username and password; attached MAC address; HTTPS; IEEE 802.1x; controlled network access |
| User Management |
Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection |
Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| PIP |
Yes (Intelligence automatically turns off when PIP is on) |
Laser Illumination (Optional)
| Distance |
3,000 m (9,842.52 ft) |
| Angle of Laser Illuminator |
0.4°–30° adjustable |
Laser Range Finder (Optional)
| Distance |
6,000 m (19,685.04 ft) |
| Accuracy |
±1m |
| Heat Detection |
Yes |
| Cold/Hot Spot Trace |
Yes |
| IVS (Perimeter Protection) |
Yes. Supports tripwire and intrusion. |
| Target Distinction |
Yes |
| Target Tracking |
Manual tracking and alarm tracking |
| Boat Tracking |
Yes |
| Boat Detection |
Yes |
| Smoke Detection |
Yes |
| Target Filtering |
Yes |
| Target Distinction |
Human/Vehicle classification |
| Analog Output |
1 × CVBS output; BNC port |
| Network Port |
1 × RJ-45 (10/100 Base-T) |
| Alarm Input |
7 (bare wire) |
| Alarm Output |
2 (bare wire) |
| Audio Input |
1 (LINE IN, RCA port) |
| Audio Output |
1 (LINE OUT, RCA port) |
| RS-485 |
1 (bare wire) |
| Fiber Optic Port |
1 × RJ-45 (10/100 Base-T), 1 × optical fiber (100 Mbps, single mode, FC) |
Power
| Power Supply |
Wide input voltage 36–57 VDC |
| Power Consumption |
Basic: 55.45 W Max: 58.32 W (illuminator off, heater off); 119.54 W (illuminator on, heater off); 529.34 W (illuminator on, heater on) |
| Operating Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity |
≤95% |
| Storage Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
Physical Characteristics
| Protection |
Dome compartment: IP67 PTZ: IP66 |
| Reliability |
Surge protection: 6 kV Contact discharge of 6 kV Air discharge of 8 kV |
| Anti-corrosion Level |
Basic Protection *The products are designed for general use in areas that have no specific requirements for anti-corrosion protection. |
Structure
| Product Dimensions |
Φ570 mm × 977.1 mm (Φ22.44" × 38.47") |
| Packaging Dimensions |
784 mm × 784 mm × 1,372 mm (30.87" × 30.87" × 54.02") (L × W × H) |
| Net Weight |
≤113 kg (249.12 lb) |
| Gross Weight |
≤200 kg (440.92 lb) |
Perimeter Protection Distance (IVS Distance)
Note: The table displays the measured distances obtained from using the target sizes 1.8 m × 0.5 m (human) and 1.4 m × 4 m (vehicle) for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.
