描述

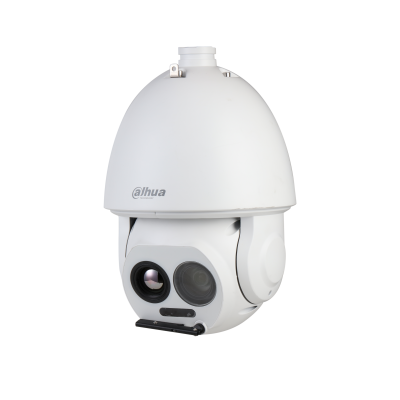

TPC-SD5641-T
Thermal Hybrid Speed Dome Camera
TPC-SD5641-T 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Technical Specification
General
| Appearance |
Thermal Network Hybrid Speed Dome Camera |
| Type |
Radiometry |
Thermal
| Detector Type |
Vanadium oxide uncooled focal plane detector |
| Effective Pixels |
640 (H) × 512 (V) |
| Pixel Pitch |
12 μm |
| Spectral Range |
8 μm–14 μm |
| Focal Length |
7 mm; 13 mm; 19 mm; 25 mm; 35 mm; 50 mm |
| Field of View |
7 mm: H: 63.8°; V: 51° 13 mm: H: 36.7°; V: 29.4° 19 mm: H: 23.3°; V: 18.6° 25 mm: H: 18.6°; V: 14.8° 35 mm: H: 12.6°; V: 10.1° 50 mm: H: 9.2°; V: 7.3° |
| Thermal Focus Control |
Fixed-focal |
| Digital Detail Enhancement (DDE) |
Yes |
| Thermal Image Stabilization |
Electronic Image Stabilization (EIS) |
| Digital Zoom |
24 levels |
| Thermal AGC |
Auto/Manual |
| Thermal Noise Reduction |
2D NR/3D NR |
| Image Flip |
180° |
| Color Palettes |
18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Temperature Measurement Range |
Low temperature mode: –20 °C (–4 °F) to +150 °C (+302 °F) High temperature mode: 0 °C (+34 °F) to +550 °C (+1022 °F) Auto mode |
| Temperature Measurement Accuracy |
Max. (±2 °C, ±2%) Operating temperature: –20 °C (–4 °F) to +50 °C (+122 °F) |
| Temperature Measurement Mode |
Spot: 12 Line: 12 Area: 12 Supports 12 rules simultaneously |
Visible
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
2688 (H) × 1520 (V) |
| Pixel |
4 MP |
| Horizontal Definition |
Center ≥ 1200 TVL Edge ≥ 900 TVL |
| Min. Illumination |
Color: 0.01 lux Black & white: 0.001 lux 0 lux (IR on) |
| Visible AGC |
Auto/Manual |
| Visible Noise Reduction |
2D NR/3D NR |
| S/N Ratio |
≥55 dB |
| White Balance |
Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog |
Electronic defog |
| Visible Image Stabilization |
Electronic Image Stabilization (EIS) |
| Electronic Shutter Speed |
1 s–1/30,000 s (auto/manual) |
| BLC |
Yes |
| WDR |
Yes |
| HLC |
Yes |
| Day/Night |
Auto (ICR); Color; B/W |
| Iris Control |
DC Auto |
| Exposure Compensation |
Yes |
| Visible Focus Control |
Auto/Semi-auto/Manual |
| Focal Length |
3.95 mm–177.75 mm |
| Zoom Speed |
＜7 s |
| Close Focus Distance |
1 m–10 m (3.28 ft–32.81 ft) |
| Optical Zoom |
45× |
| Illuminator On/Off Control |
Auto/Manual |
| Illumination Distance |
100 m (328.08 ft) |
| Video Compression |
H.265; H.264M; H.264H; H.264B |
| Resolution |
Thermal: Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default); Sub stream: 640 × 512; 320 × 256; 640 × 512 (default); Visible: Main stream: 4MP (2688 × 1520); 4MP (2560 × 1440); 2MP (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 4MP (2560 × 1440) (default); Sub stream: 2MP (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); CIF (352 × 288) (default) |
| Video Frame Rate |
Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–50 fps, 50 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–60 fps, 60 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression |
G.711a; G.711mu; AAC |
| Image Encoding Format |
JPEG |
PTZ
| Pan/Tilt Range |
Pan: 0° to 360° endless Tilt: –10° to +90° |
| Manual Control Speed |
Pan: 0.1°/s to 200°/s Tilt: 0.1°/s to 120°/s |
| Preset Speed |
Pan: 240°/s Tilt: 200°/s |
| Preset |
300 |
| Tour |
8 (up to 32 presets per tour) |
| Pattern |
5 |
| Scan |
2 |
| Power-off Memory |
Yes |
| Privacy Masking |
4 blocks |
| Idle Motion |
Preset; pattern; tour; pan; scan |
Function
| Two-way Audio |
Yes |
| Network Protocol |
HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Region of Interest (RoI) |
Yes |
| Regional Focus |
Yes |
| Storage |
FTP; Micro SD card (optional) |
| Interoperability |
ONVIF; CGI; DaHua SDK |
| Browser |
IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer) Chrome: 42 and earlier Firefox: 42 and earlier |
| User/Host |
Up to 20 (total bandwidth: 64 MB) |
| Security |
Authorized username and password; attached MAC address; HTTPS; IEEE 802.1x; controlled network access |
| User Management |
Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection |
Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Micro SD Card (Max.) |
512 GB |
| IVS |
Yes |
| Cold/Hot Spot Trace |
Yes |
| IVS (Perimeter Protection) |
Yes. Supports tripwire and intrusion. |
| Target Distinction |
Human/Vehicle Classification |
| Target Tracking |
Yes |
| Smoke Detection |
Yes |
| Smoke Detection Distance |
4,000 m (13,123.36 ft) |
| Boat Tracking |
Yes |
| Analog Output |
1 × CVBS output; BNC port |
| Network Port |
1 × RJ-45 (10/100 Base-T) |
| Alarm Input |
7 |
| Alarm Output |
2 |
| Audio Input |
1 |
| Audio Output |
1 |
| RS-485 |
1 |
Power
| Power Supply |
36 VDC ± 50%, Hi-PoE |
| Power Consumption |
Basic: ≤21 W Max: ≤40 W |
| Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity |
≤95% |
| Storage Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
Physical Characteristics
| Protection |
IP66 |
| Product Dimensions |
Φ240.0 mm × 382.0 mm (Φ9.45" × 15.04") |
| Packaging Dimensions |
319.0 mm × 319.0 mm × 521.0 mm (12.56" × 12.56" × 20.51") (L × W × H) |
| Net Weight |
≤8 kg (17.64 lb) |
| Gross Weight |
≤10 kg (22.05 lb) |
| Lens |
Included |
| Reliability |
Surge protection: 6 kV Air discharge of 15 kV Contact discharge of 8 kV |
| Anti-corrosion Level |
Basic Protection *The products are designed for general use in areas that have no specific requirements for anti-corrosion protection. |
Certification
Temperature Measurement Distance
Note: The table displays the measured distances obtained from using the target size 0.1 m × 0.1 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.
