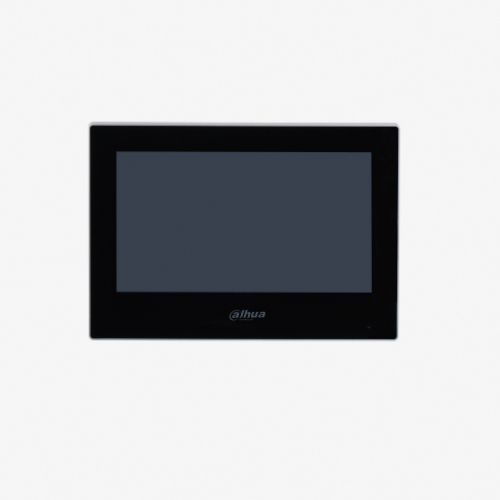

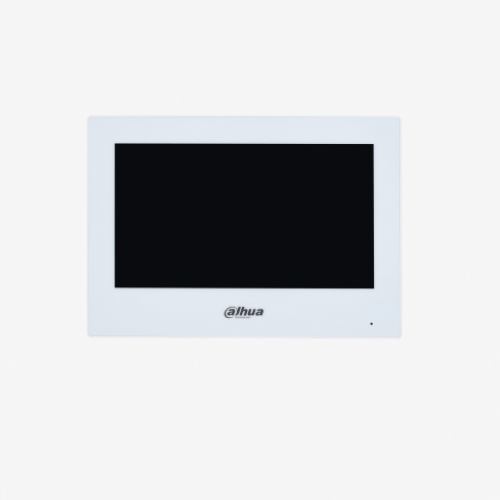

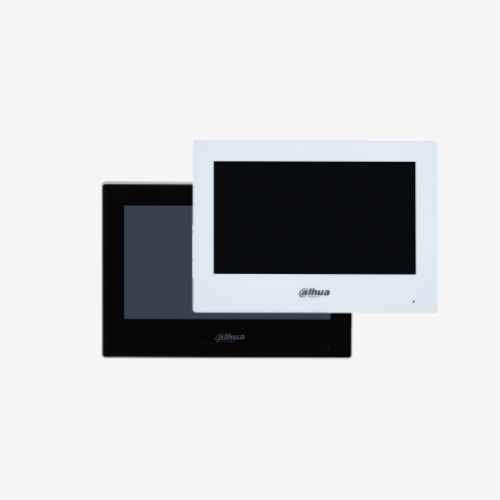

Dahua VTH2621G(W)-WP IP Indoor Monitor

分類: 標籤:

描述

Dahua VTH2621G(W)-WP IP Indoor Monitor

IP Indoor Monitor

> 7″ TFT capacitive touch screen, 1024 × 600
> 6-channel alarm input and 1-channel alarm output
> Wi-Fi
> Standard PoE
> Outdoor station and IPC monitor
> H.265 and H.264 video decoding
> High performance & cost-effective

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Network Protocol

IPv4; FTP; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP; SIP

Basic

Screen Type

Capacitive Touchscreen

Display

7″ TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

2-way voice communication

Audio Enhancement

Echo suppression

Audio Bit Rate

16 kHz; 16 Bit

Function

Communication Mode

Full digital

Information Release

Receive and view text information released by the management center

DND Mode

Do not disturb period can be set; Do not disturb mode

Number of Extensions

Villa: 9
Apartment: 4

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Performance

Casing

PC + ABS

Port

Alarm Input

6

Alarm Output

1

Power Output

1 (12 V/200 mA)

Door Bell

Yes (use any alarm input port)

Network

One 10 /100 Mbps Ethernet

Network

One 10 Mbps/100 Mbps Ethernet

Alarm

SOS

Yes

General

Color

White

Power Supply

12 VDC 1A;
Standard PoE (36–57 V, 0.35 A)

Installation

Surface Mount

Certifications

CE; FCC

Accessory

Bracket and alarm ribbon cable (included)

Dimensions

189.6 mm × 134.6 mm × 26.0 mm (7.50″ × 5.30″ × 1.00″)

Operating Temperature

–10 °C to +55 °C (+14 °F to 131 °F)

Operating Humidity

10%–95% RH (non-condensing)

Operating Altitude

Beneath 3,000 m (9,842.52 ft)

Power Consumption

Standby ≤ 2W; working ≤ 6W

Net Weight

335 g (0.74 lb)

Gross Weight

575 g (1.27 lb)

Gross Weight

575 g (1.27 lb)
