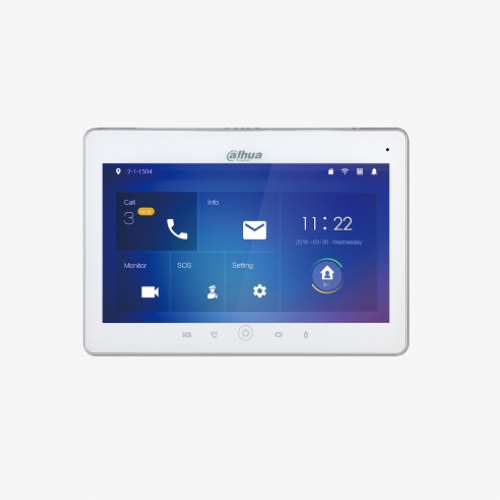

Dahua VTH5241DW-S2 Wi-Fi Indoor Monitor

分類: 標籤:

描述

Dahua VTH5241DW-S2 Wi-Fi Indoor Monitor

Wi-Fi Indoor Monitor

> 10″ TFT Capacitive touch screen, 1024×600
> IPC surveillance
> 6ch wired alarm integration, 6ch wireless alarm integration(433MHZ)
> Micro SD card optional, max 32GB
> Record & Snapshot(SD card needed)

Technical Specification

Model

VTH5241DW-S2

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Audio

Audio Compression

G.711

Audio Input

All-direction Microphone

Audio Output

Built-in Loudspeaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Display

LCD Screen

10″ 1024×600

Operation Mode

Input

Touch buttons and capacitive screen

Interface

Wired Zones

6 on-board zones

Wireless Zones

8 wireless zones

Alarm Out

1

RS485

1

Network

Wi-Fi

IEEE802.11b/g/n 2400~2483.5MHz CE EIRP≤20dBm, FCC POWER≤30dBm

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

General

Memory Slot

Micro SD, Max 32GB

Installation

Surface

Power

DC 12V, PoE802.3af)

Power Consumption

Work ≤8W

Working Temperature

﹣10°C to +55°C

Relative Humidity

10%RH–90%RH

Dimensions

265.0mm×180.0mm×22.5mm

Weight

1kg
