描述

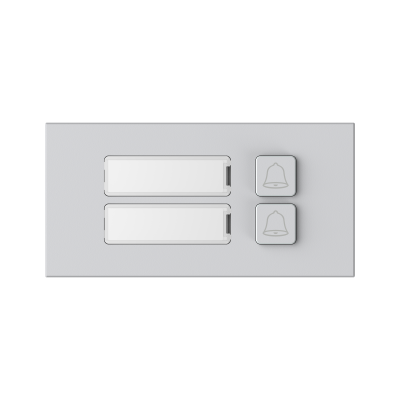

VTO4202F-MB2
Module
VTO4202F-MB2 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
Technical Specification
System
| Button Type |
Mechanical |
| Number of Buttons |
2 |
Performance
| Casing Material |
Aluminum alloy |
Port
| Power Output |
5 VDC (Provide power for other modules) |
General
| Appearance Color |
Silver |
| Power Supply |
5 VDC (Provided with power by other modules) |
| Certifications |
CE EMC; CE LVD |
| Product Dimensions |
100.0 mm × 50.0 mm × 26 mm (3.94" × 1.97" × 1.02") |
| Protection |
IK07; IP65 (Silicone sealant is needed for installation) |
| Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity |
10%–90% (RH), non-condensing |
| Operating Environment |
Outdoor |
| Operating Altitude |
0 m–3,000 m (0 ft–9,842.52 ft) |
| Power Consumption |
≤0.2 W (standby), ≤0.6 W (working) |
| Gross Weight |
0.23 kg (0.51 lb) |
| Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity |
30%–75% (RH) |
