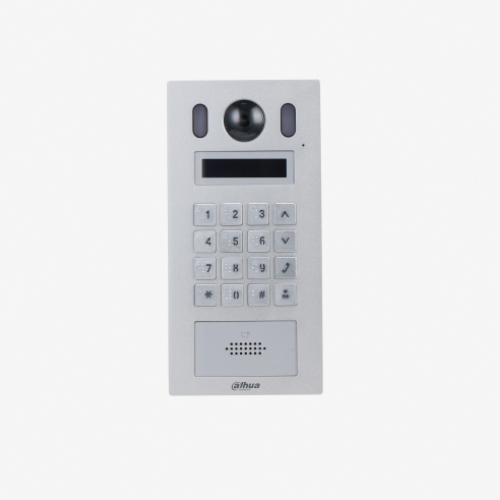

Dahua VTO6221E-P Apartment Door Station

分類: 標籤:

描述

Dahua VTO6221E-P Apartment Door Station

Apartment Outdoor Station

> Small size apartment door station
> Supplemental lighting with white light
> 2MP CMOS camera
> Mechanical button with Braille
> Aluminium alloy plate, IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

> Door release via password and Mifare card

Technical Specification
ModelVTO6221E-P
System
Main ProcessorEmbedded Micro Processor
Operation SystemEmbedded LINUX OS
Video
Video CompressionH.264
Image Sensor1/2.9” 2MP CMOS
Auto Gain ControlWhite Light
Lens2mm
Angle of ViewH:138°,V:78°, D:158°
Day/NightColor Image
Audio
Audio CompressionG.711
Audio InputOmnidirectional Mic
Audio OutputBuilt-in Speaker
Bidirectional TalkSupport Dual-way Bidirectional talk
Display
Screen2.3” OLED
Operation Mode
KeypadMechanical Button with Braille
ReaderMifare Card (13.56MHz)
Interface
Alarm In/Out1/1
Door Control1 Relay Out

1 RS485

1 Feedback

1 Exit Button

Wiegand In1
Network
Ethernet10M/100Mbps
Network ProtocolTCP/IP
General
Ingress ProtectionIK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Tamper Switch1
InstallationSurface & Flush
MaterialAluminum
PowerDC 12V, 2A, PoE(802.3af)
Power ConsumptionWork ≤6W
Working Temperature﹣40°C~+60°C
Relative Humidity20%~95%RH
Dimensions200mm×98mm×32mm
Weight1.5Kg
