Dahua VTO6521K Apartment Door Station

分類: 標籤:

描述

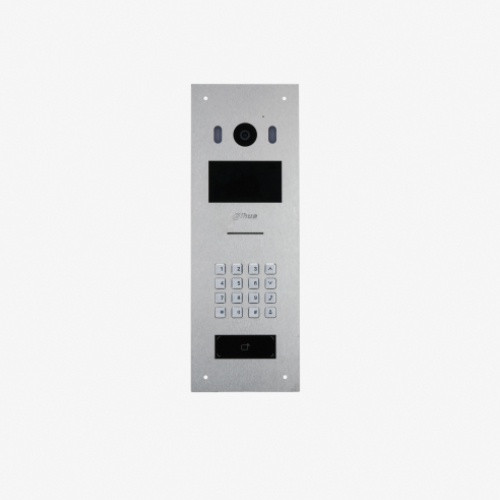

Dahua VTO6521K Apartment Door Station

Apartment Door Station

> 4.3-inch LCD display with easy-to-press metal buttons; screen resolution 800 × 480.

> 2MP CMOS; true WDR.

> 316 stainless steel panel; IP65, IK08.

> Operating temperature: –30 °C to +60 °C.

> Auto light illumination reduces light pollution.

> Multiple verification methods: Password, IC card, QR code, and remote unlocking.

> Support 20,000 users and 10,000 cards.

> Support full duplex; management platform, and voice call through APP.

> Support SIP server, and can manage 500 indoor monitors at most.

> Support duress alarm, tamper alarm, and door sensor timeout alarm.



System
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux OS
Button TypeMechanical
Network ProtocolRTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF
Basic
Screen TypeNon-touchscreen
Display Screen4.3″ LCD
Resolution800 (H) × 480 (V)
Camera1/2.8″ CMOS 2-MP low-illumination HD color camera
Field of ViewH: 86.4°; V: 46.2°; D: 100.6°
WDR120 dB
Noise Reduction3D NR
Video CompressionH.264
Video Resolution50 Hz: Main stream (720p@25 fps), sub stream (1080p@25 fps)
60 Hz: Main stream (720p@30 fps), sub stream (1080p@30 fps)
Video Frame Rate25 fps
Video Bit Rate256 kbps–8 Mbps
Light CompensationAuto white light
Audio CompressionG.711a; G.711u; PCM
Audio Input1
Audio OutputBuilt-in speaker
Audio Mode2-way voice communication
Audio EnhancementEcho suppression/digital noise reduction
Audio Bit Rate16 kHz, 16 bit
Function
Communication ModeFull digital
Unlock ModeCard; remote; password; QR code
Card TypeIC card
Motion DetectionVideo motion detection
Leave VideosYes
Web ConfigurationYes
Performance
Card Reading Distance1 cm–3 cm (0.39″–1.18″)
Issue Card LocallyYes
Casing316 stainless steel
Capacity
Card Capacity10, 000
Port
RS-4851
Wiegand1 (input or output, configurable)
Electric Lock1
Alarm Input1 (digital quantity)
Alarm Output1 (relay)
Power Output1-ch, 12 V/200 mA
Exit Button1
Door Status Detection1
Lock Control1, normally open by default (can be expanded to 2 channels with RS-485)
Network Port1 × RJ-45 10/100 Mbps Ethernet port
Alarm
Tamper AlarmYes
General
Unlock Password ModeUser password; public password; duress password
Appearance colorSilver
Power Supply12 VDC, 2 A
Power AdapterOptional
InstallationFlush Mount; Surface Mount
CertificationsCE; FCC
AccessoryOptional: flush mount box, rain cover
Product Dimensions406 mm × 143 mm × 54.05 mm (15.98″ × 5.63″ × 2.13″)
ProtectionIP65 rated (silicone sealant is needed for installation)
IK08
Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity10%–90% (RH), non-condensing
Operating Altitude0 m–3,000 m (0 ft–9,842.51 ft)
Power Consumption≤ 5 W (standby), ≤ 18 W (working)
Gross Weight2.05 kg (4.52 lb)
