描述

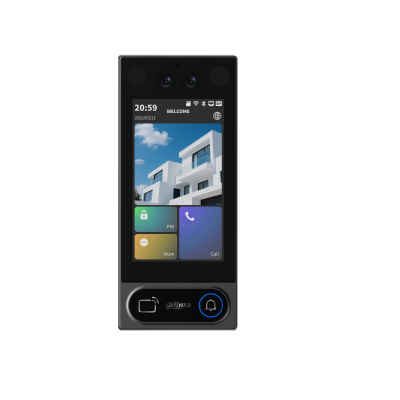

VTO6631QB-WP/VTO6631QS-WP
IP & Wi-Fi Villa Door Station
VTO6631QB-WP/VTO6631QS-WP 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux OS |
| Button Type |
Mechanical |
| Number of Buttons |
1 |
| Interoperability |
ONVIF;CGI |
| Network Protocol |
RTSP;DNS;FTP;RTP;RTMP;SIP;SSH;HTTP/HTTPS;ONVIF |
Basic
| Screen Type |
Capacitive Touchscreen |
| Display Screen |
5-inch display screen |
| Screen Resolution |
720 (H) × 1280 (V) |
| Camera |
1/2.8" 2 MP CMOS high-definition, low illumination, dual cameras |
| Field of View |
H: 119°; V: 66°; D: 142° |
| WDR |
120 dB |
| Noise Reduction |
3D NR |
| Video Compression |
H.264;H.265 |
| Video Resolution |
Main stream: 720P/D1/WVGA/CIF； Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA |
| Video Frame Rate |
PAL: 25 fps; NTSC: 30 fps |
| Video Bit Rate |
256 kbps–4,096 kbps |
| Light Compensation |
Auto IR |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 channel |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression/digital noise reduction |
| Audio Bit Rate |
16 kHz, 16 bit |
Function
| Communication Mode |
Full digital |
| Verification Method |
Card;Password;Face Recognition;Bluetooth |
| Frequency Range |
2400-2483.5 MHz |
| Max. Transmission Power |
CE EIRP: ≤20 [email protected] MHz |
| Bluetooth |
Yes |
| Bluetooth Standard |
BLE (Bluetooth mode), BT5.2 (Bluetooth version) |
| Auto Snapshot |
Yes |
| Information Release |
Receive and view text information released by the management center. |
| Elevator Control |
Residents and visitors can call elevators. Permissions can also be granted to access floors through access control. |
| Leave Videos |
Yes (SD card inserted in VTO is needed) |
| Storage |
Supports Micro SD card (up to 128 GB) |
| Web Configuration |
Yes |
| Auto Registration |
Yes |
RFID
| Card Type |
IC card;ID card |
| Modulation Type |
ASK |
| Frequency Range |
IC:13.56 MHz; ID:125 kHz |
| Max. Transmission Power |
IC:42 dBuA/m @10m; ID:66 dBuA/m @10m |
Network
| Max. Transmission Power |
≤20 [email protected] MHz |
| Wi-Fi |
Yes |
| Wireless Standard |
IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range |
2.4 GHz |
Performance
| Card Reading Distance |
0 cm–3 cm |
| Face Recognition Height Range |
1.2 m–2.0 m (3.94 ft–6.56 ft) |
| Face Recognition Distance |
0.3 m–2.0 m (0.98 ft–6.56 ft) |
| Face Recognition Accuracy |
99.9% |
| Face Recognition Time |
0.2 s |
| Casing Material |
Tempered glass;PC + ABS |
Capacity
| Card Capacity |
100,000 |
| Face Image Capacity |
20,000 |
| User Capacity |
20,000 |
Port
| RS-485 |
1 channel |
| Wiegand |
1 channel |
| Alarm Input |
2 channels |
| Alarm Output |
1 channel |
| Power Output |
Max 12 V, 1.5 A through an adapter Max 12 V, 0.5 A through PoE |
| Exit Button |
1 channel |
| Door Status Detection |
1 channel |
| Lock Control |
1 channel, open by default |
| Network Port |
1 × 10 Mbps/100 Mbps Ethernet port |
Alarm
General
| Appearance Color |
Dark Silver |
| Power Supply |
Standard PoE; 12 VDC, 3 A |
| Power Adapter |
Optional |
| Installation |
Surface Mount |
| Certifications |
CE |
| Accessory |
Power supply (optional); Surface Mounted (standard) |
| Product Dimensions |
186.8 mm × 81.4 mm × 23.3 mm (7.35" × 3.20" × 0.92") (H × W × D) |
| Protection |
IP65 rated (Silicone sealant is required.) |
| Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity |
0%–90% (RH), non-condensing |
| Operating Environment |
Outdoor |
| Operating Altitude |
0 m–1,300 m (0 ft–4,265.09 ft) |
| Power Consumption |
≤ 8 W (standby), ≤ 10 W (working). These two values of power consumption do not contain the output power. |
| Gross Weight |
0.82 kg (1.81 lb) |
| Storage Temperature |
–20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity |
30%–75% |
