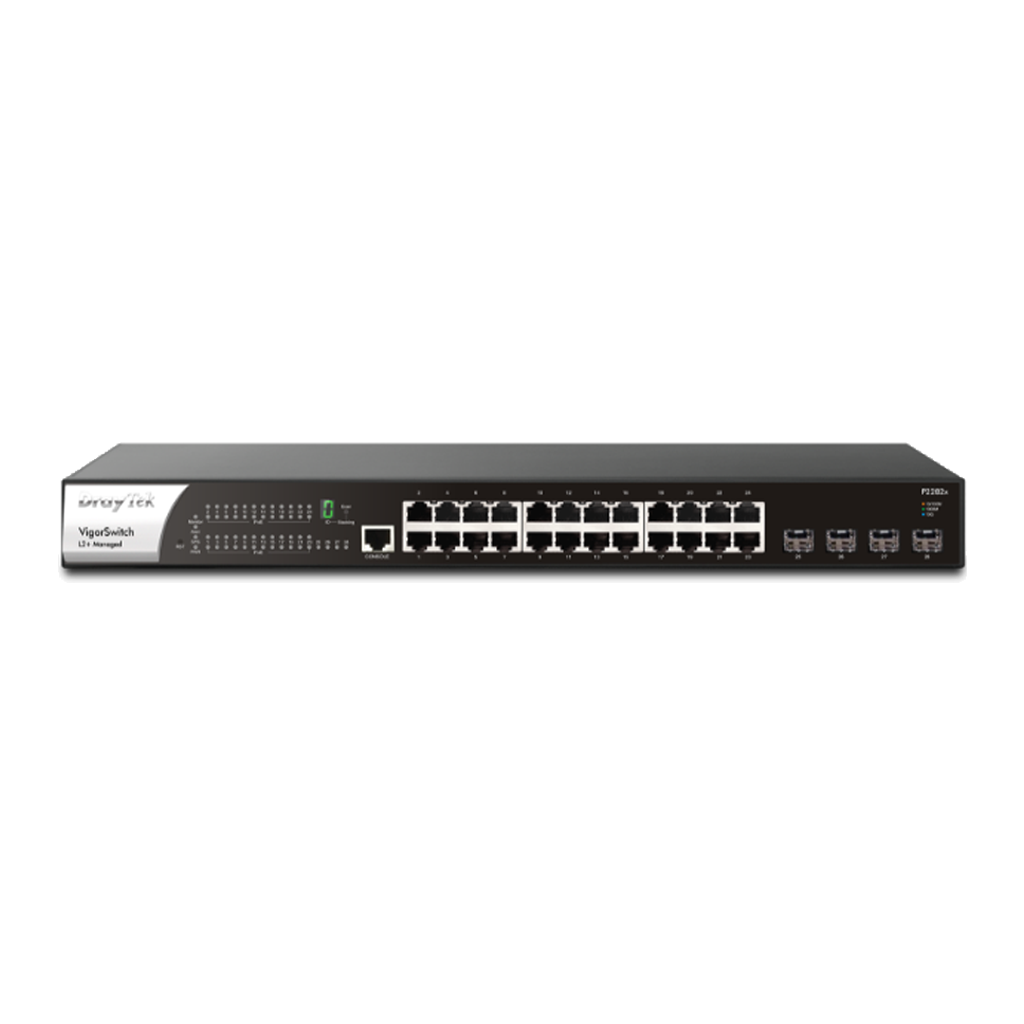

DrayTek VigorSwitch P2282x
28-Port L2+ Managed 10G PoE Switch
Features
- PoE (Power over Ethernet)
- 10G SFP+
- Ping Device Check
- Wire-Speed VLAN Routing
- Stacking
- ONVIF-Friendly
- Auto Surveillance & Voice VLAN
- IPv6 Ready
- IP Conflict Prevention
- Web-Based GUI
- QoS (Quality of Service)
- Multiple Admin Accounts
- Central Switch Management
- LLDP-MED
Specifications
| Performance | |
| Buffer Size (Mbit) | 12 |
| Switching Capacity (Gbps) | 128 |
| Forwarding Rate (64 bytes)(Mpps) | 95.2 |
| MAC Address Table | 16K |
| Max. Jumbo Frame (KB) | 12 |
| L3 Routing Table | √ |
| Ports | |
| 1 GbE | 24 |
| SFP+ (10G) | 4 |
| Console (RJ-45) | 1 |
| PoE | |
| PoE+(802.3af/at) Ports | 24 |
| PoE Power Budget (watts) | 400 |
| Scheduled On/Off | √ |
| Physical | |
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 6.5A |
| Backup Power Input | DC 12V @ 5A & DC 54V @ 7.4A |
| Max. Power Consumption (watts) | 460.4 |
| Dimension (mm) | 440 x 281 x 44 |
| Weight (kg) | 4.26 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
