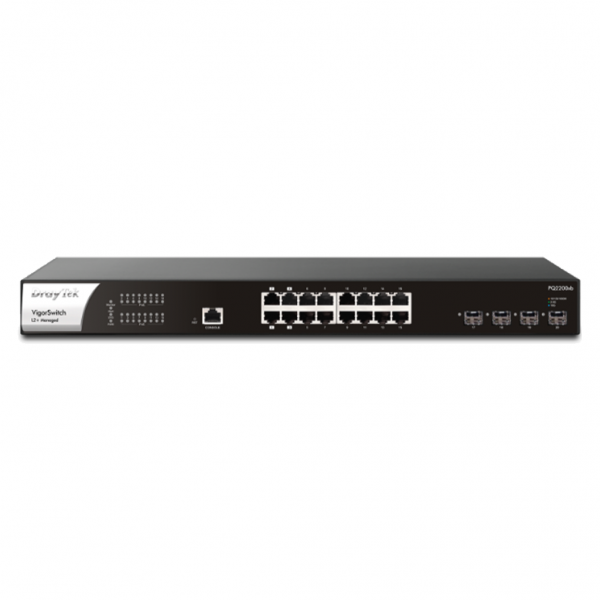

DrayTek VigorSwitch PQ2200xb
Full 2.5GbE L2+ Managed Switch with PoE++
Features
- PoE++ (802.3bt)
- QoS (Quality of Service)
- Ping Device Check
- ONVIF-Friendly
- 2.5GbE
- IPv6 Ready
- 10G SFP+
- Web-Based GUI
- Wire-Speed VLAN Routing
- Multiple Admin Accounts
- Auto Surveillance & Voice VLAN
- Central Switch Management
- IP Conflict Prevention
- LLDP-MED
Specifications
| Performance | |
| Buffer Size (Mbit) | 12 |
| Switching Capacity (Gbps) | 160 |
| Forwarding Rate (64 bytes)(Mpps) | 119.04 |
| MAC Address Table | 16K |
| Max. Jumbo Frame (KB) | 10 |
| L3 Routing Table | √ |
| Ports | |
| 2.5 GbE | 16 |
| SFP+ (10G) | 4 |
| Console (RJ-45) | 1 |
| Ports | |
| 2.5 GbE | 16 |
| SFP+ (10G) | 4 |
| Console (RJ-45) | 1 |
| Physical | |
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 6A |
| Max. Power Consumption (watts) | 550 |
| Dimension (mm) | 440 x 281 x 44 |
| Weight (kg) | 4.3 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
