Description

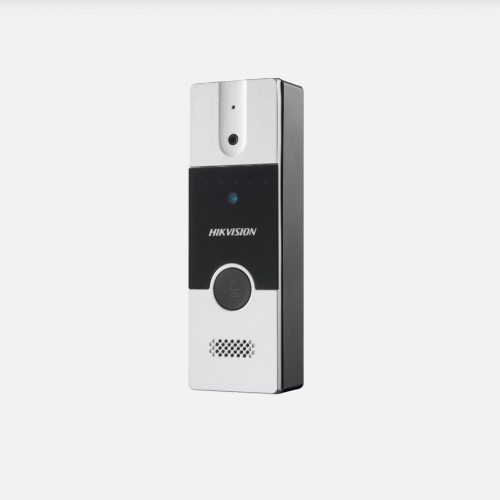

HIKVISION DS-KB2411T-IM Analog Four Wire Door Station

Analog Four Wire Door Station

• Hands-free video intercom communication
• Supports two door stations simultaneously in the intercom system
• Self-adaptive IR supplement (with photoresistor)
• One-touch calling
• Pinhole camera with 1920 x 1080 @ 25 fps
• Unlock controlling
• Anti-oxidant aluminium alloy
• Convenient installation and easy operation

Video Parameters

• Camera- 1/2.7″ CMOS
• Resolution- 1920 x 1080
• FOV- Horizontal: 66.2°，Vertical: 37.2°
• Video Frame Rate- PAL: 25 fps

Audio Parameters

• Audio Input- Built-in omnidirectional microphone
• Audio Output- Built-in loudspeaker

Device Interfaces

• Four-Wire Interface- 1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding)
• I/O Output- 1 relay output

General

• Power Supply- 12 VDC
• Power Consumption- Max. 5W
• Working Temperature- -10° C to + 55° C (14° F to 131° F)
• Working Humidity- 10% to 90%
• Dimensions (L X W X H)- 135.14 mm × 49.6 mm × 41.93 mm (5.32″ × 1.95″ × 1.65″)
• Material- Aluminum alloy
