Description

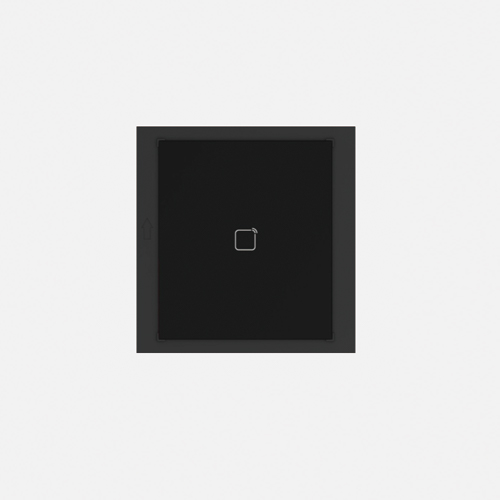

HIKVISION DS-KD-M KD8 Series Pro Modular Door Station

KD8 Series Pro Modular Door Station

• Modular door station Mifare 1 card reader module, 13.56MHz, needs mouting bracket
• Backlight compensation, IP65
• Unlock door via swiping card, Supports issuing cards
• Easy to and extend

System Parameters

• Operating System- Embedded Linux operation system
• ROM- Not supported.
• RAM- Not supported.
• CPU- Embedded MCU Processor

Device Interfaces

• TAMPER- Not supported.
• Wiegand- Not supported.
• Power Interface- 1

General

• Button- /
• Installation- Flush Mounting, Surface Mounting
• Indicator- With package: 421 g, Without package: 160 g
• Protective Level- IP65
• Working Temperature- -40° C to +55° C(-40° F to 131° F)
• Working Humidity- 10% to 95%
• Dimensions- 98.5 mm × 100 mm × 33.7 mm (3.87″ × 3.95″ × 1.33″)
• Battery- /
• Application Environment- Outdoor
• Power Consumption- 0.8 W
