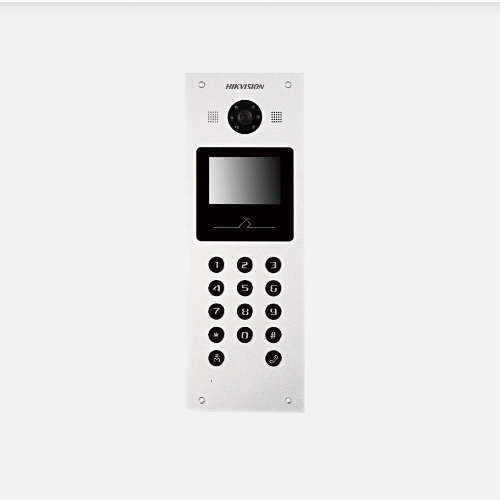

HIKVISION DS-KD3002-VM/Analog Analog Door Station

分類: 標籤:

描述

HIKVISION DS-KD3002-VM/Analog Analog Door Station

Analog Door Station

  • Analog door station
  • 1.3 MP colorful camera with visible light supplement
  • 3.5-inch Colorful LCD display, Physical Keypad
  • 1 RJ45(analog) interface, 1 Ethernet port, Wiegand & RS-485
  • Tampering alarm and door magnetic alarm
  • 4-ch alarm input,4-ch alarm output
  • IP65, 12 VDC. Aluminum Alloy

Display Parameters

  • Display Resolution- 480 × 320
  • Display Screen- 3.5-Inch Colorful TFT LCD
  • Operation Interface- LCD Display, Easy Menu

Video Parameters

  • Camera- CMOS Low Illumination 1.3 MP HD Colorful Camera
  • Resolution- 1280 × 720
  • Video Frame Rate- PAL: 25 fps, NTSC: 30 fps
  • Video Compression Standard- H.264

Audio Parameters

  • Audio Compression Rate- 64 Kbps
  • Audio Compression Standard- G.711 U
  • Audio Input- Built-in Omnidirectional Microphone
  • Audio Output- Built-in Loudspeaker
  • Audio Quality- Noise Suppression and Echo Cancellation

Device Interfaces

  • RS-485- 1 RS-485 Half-Duplex Port
  • Wiegand- 1 Wiegand Port for Accessing Wiegand IC Card Reader
  • USB- 1 USB 2.0, Supporting U-Disk
  • I/O Output- 4
  • Network Interface- 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
  • I/O Input- 4

General

  • Power Supply- 12 VDC
  • Power Consumption- ≤15 W
  • Working Temperature- -40° C to +60° C (-40° F to 140° F)
  • Working Humidity- 10% to 90%
  • Certification- FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
  • Dimensions(L × W × H)- 357 mm × 124 mm × 55 mm (14.1″ × 4.9″ × 2.2″)
  • IP Protection Level- IP65
  • Material- Aluminum Alloy
