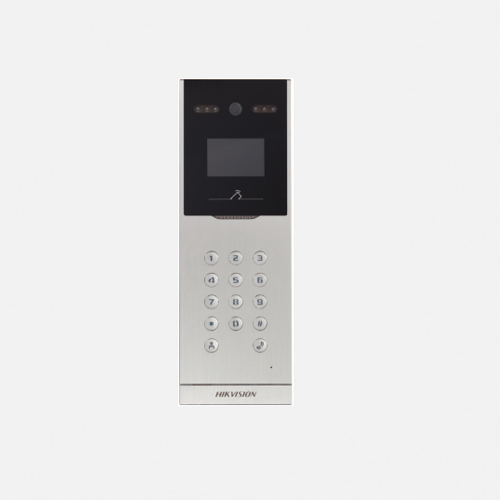

HIKVISION DS-KD8002-VM KD8 Series Pro Metal Door Station

KD8 Series Pro Metal Door Station

• IP door station
• 1.3 MP camera with visible light
• 3.5″ Physical Touch Key, Aluminum Alloy, 3.5-inch LCD
• Wiegand & RS-485, 8-ch alarm input,4-ch alarm output
• IP65, USB 2.0, 12 VDC

Display Parameters

• Size- 3.5-Inch
• Operation Method- Physical button
• Type- Colorful TFT LCD

Video Parameters

• Supplement Light- Visible Light Supplement
• Lens- 1
• FOV- /
• Pixel- 1280 × 720

Audio Parameters

• Audio Quality- Noise suppression and echo cancellation

Network Parameters

• Communication Protocol- TCP/IP, RSTP
• Wired Network- 10/100 Mbps self-adaptive Ethernet
• Wi-Fi- /
• Bluetooth- /

Device Interfaces

• Network Interface- 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
• Exit Button- 1
• Lock Control- 1
• Door Contact Input- 1
• Power Interface- 1

General

• Button- 14
• Installation- Surface mounting
• Indicator- 0
• Protective Level- IP65
• Power Supply Method- 12 VDC
• Working Temperature- -40° C to +60° C (-40° F to 140° F)
• Working Humidity- 10% to 90%
• Dimensions- 418 mm × 145 mm × 61 mm (16.5″ × 5.7″ × 2.4″)
• Battery- /
• Application Environment- Outdoor
• Power Consumption- ≤15 W
