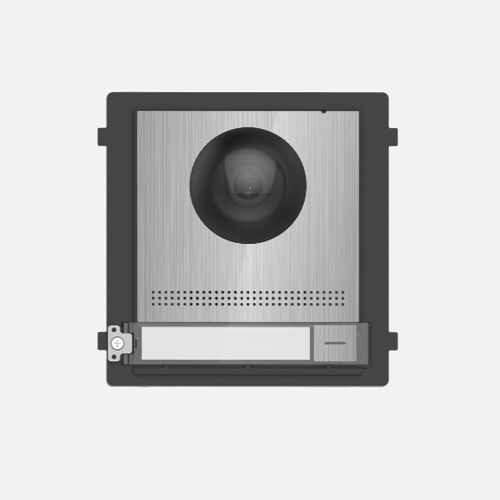

HIKVISION DS-KD8003-IME1/S KD8 Series Pro Modular Door Station
KD8 Series Pro Modular Door Station
- Modular door station Main unit, needs mounting bracket
- 2MP HD Camera, Fish eye, IR Supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- IP65, 12 VDC or standard POE
- Video intercom to indoor station and main station
Video Parameters
- Supplement Light- IR supplement
- Lens- Low Illumination 2 MP HD IR Camera
- FOV- Horizontal: 180°, Vertical: 96°
- Pixel- Main stream : 1920 × 1080, Sub stream : 720 × 480
Audio Parameters
- Audio Quality- Noise suppression and echo cancellation
Capacity
- Sub Door Station Capacity- 16
Network Parameters
- Communication Protocol- TCP/IP, RTSP
- Wired Network- Support
- Wi-Fi- /
- Bluetooth- /
Device Interfaces
- Network Interface- 1 10/100M self-adaptive Ethenet
- Exit Button- 2
- Lock Control- 2
- Door Contact Input- 2
- Power Interface- 1
General
- Button- /
- Installation- Flush mounting, surface mounting
- Indicator- Without package: 415 g, With package: 625 g
- Protective Level- IP65
- Working Temperature- -40° C to +55° C(-40° F to 131° F)
- Working Humidity- 10% to 95%
- Dimensions- 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)
- Battery- Power Supply
IEEE- 802.3af, standard PoE, 12 VDC, 1 A
- Application Environment- Outdoor
- Power Consumption- 4 W
- Language- English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
