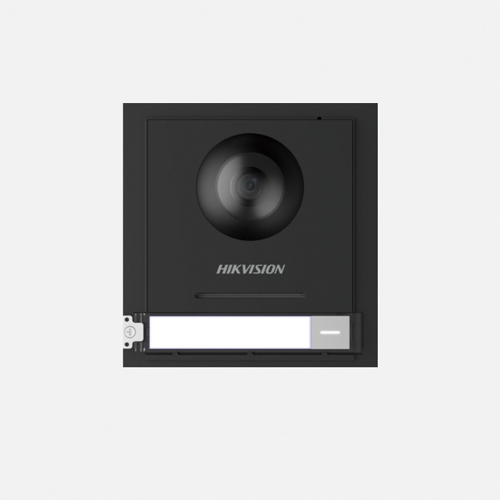

HIKVISION DS-KD8003-IME1 KD8 Series Pro Modular Door Station

KD8 Series Pro Modular Door Station

• Modular door station Main unit, needs mouting bracket
• 2MP HD Colorful Camera, Fish eye, IR Supplement
• 1 Call physical Button, 2 lock relays, 4-ch alarm input
• IP65, 12 VDC or standard POE
• Video intercom to indoor station and master station

System Parameters

• Processor- Embedded MCU Processor
• Operation System- Embedded Linux Operation System

Video Parameters

• Supplement Light- IR Supplement
• Video Compression Standard- H.264

Audio Parameters

• Audio Input- Built-in Omnidirectional Microphone
• Audio Output- Built-in Loudspeaker(More than 85 dB within 20 cm )
• Audio Compression Bitrate- 64 Kbps
• Audio Quality- Noise Suppression and Echo Cancellation

Network Parameters

• Ethernet- 10/100 Mbps Self-Adaptive Ethernet
• Network Protocol- TCP/IP, RTSP

Device Interfaces

• Alarm Input- Tampering Alarm
• I/O Input- 4
• I/O Output- 2

General

• Power Supply- 12 VDC/PoE ( IEEE 802.3af)
• Power Consumption- 4 W
• Working Temperature- -40° C to +55° C (-40° F to 131° F)
• Working Humidity- 10% to 95%
• Protective Level- IP65
• Dimensions(L × W × H)- 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)
• Language- English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
