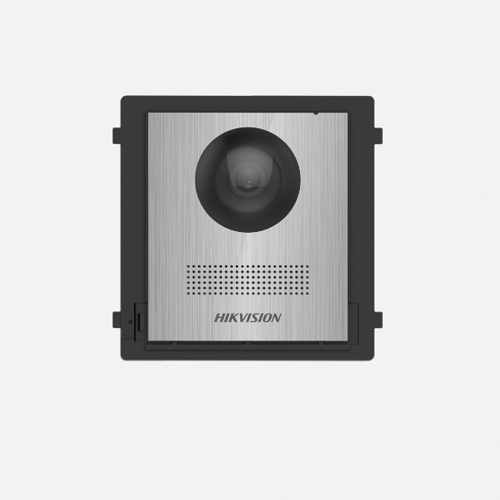

HIKVISION DS-KD8003-IME2/NS Two wire main unit
Two wire main unit
- Modular door station Main unit, needs mounting bracket
- 2MP HD Camera, Fish eye, IR Supplement
- 2 lock relays, 4-ch alarm input
- 12 VDC, IP65
- Video intercom to indoor station and main station
System Parameters
- Operating System- Embedded Linux operation system
- ROM- 16 MB
- RAM- 256 MB
- CPU- Embedded MCU Processor
Video Parameters
- Lens- Low Illumination 2 MP HD IR Camera
- Resolution- Main stream : 1920 × 1080, Sub stream : 720 × 480
- FOV- Horizontal: 180° Vertical: 96°
- WDR- Support
- Supplement Light- IR supplement
- Video Compression Standard- H.264
Audio Parameters
- Audio Compression Standard- G.711 U
- Audio Input- Built-in omnidirectional microphone
- Audio Output- Built-in loudspeaker (More than 85 dB within 20 cm)
- Audio Compression Bitrate- 64 Kbps
- Audio Quality- Noise suppression and echo cancellation
- Volume Adjustment- Adjustable
Capacity
- Linked Indoor Station Capacity- 100
- Sub Door Station Capacity- 16
Network Parameters
- Communication Protocol- TCP/IP, RTSP
- Wired Network- Two-wire transmission
Device Interfaces
- Alarm Input- 4
- Network Interface- 1 10/100 Mbps self-adaptive Ethernet
- TAMPER- 1
- Exit Button- 2
- RS-485- 1
- USB- /
- Wiegand- /
- TF Card- /
- Alarm Output- 2
- Lock Control- 2
- Door Contact Input- 2
- Power Interface- 1
General
- Button- /
- Installation- Flush mounting, surface mounting
- Indicator- Without package: 430 g, With package: 627 g
- Protective Level- IP65
- Working Temperature- -40° C to +55° C(-40° F to 131° F)
- Working Humidity- 10% to 95%
- Dimensions- 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)
- Battery- /
- Power Supply- 24 VDC two-wire power supply (< 16 W) or 12 VDC independent power supply (< 20 W)
- Application Environment- Outdoor
- Power Consumption- 4 W
- Language- English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
