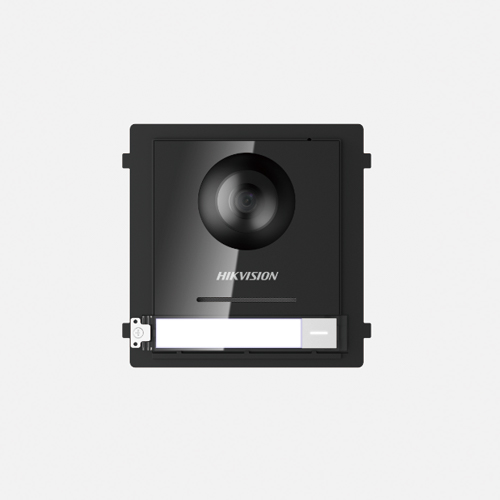

HIKVISION DS-KD8003-IME2 Two wire main unit

Two wire main unit

• Two-pin wire for power supply and network access
• Access control function
• Noise suppression and echo cancellation
• H.264 video compression
• Low illumination
• Tampering alarm
• Fisheye camera with IR supplement light
• Supports sub-modules’ access (max. 8)
• Nametag customization

Display Parameters

• Size- /
• Operation Method- Physical button
• Type- /

Video Parameters

• Supplement Light- IR supplement
• Lens- 1
• FOV- Horizontal 180°, vertical 96°
• Pixel- Main stream: 1920 × 1080, (720p configurable)͖; sub stream: 720 × 480

Audio Parameters

• Audio Quality- Noise suppression and echo cancellation

Capacity

• Sub Door Station Capacity- 16

Network Parameters

• Communication Protocol- TCP/IP, RTSP
• Wired Network- Two-wire transmission
• Wi-Fi- /
• Bluetooth- /

Device Interfaces

• Network Interface- 0
• Exit Button- 2
• Lock Control- 2
• Door Contact Input- 2
• Power Interface- 1

General

• Button- 1
• Installation- Wall mounting
• Indicator- /
• Protective Level- IP65
• Power Supply Method- 24 VDC two-wire power supply (< 16 W) or 12 VDC independent power supply (< 20 W)
• Working Temperature- -40 °C to 60 °C (-40 °F to 140 °F)
• Working Humidity- 10% to 95%
• Dimensions- 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93\” × 1.73\”)
• Battery- /
• Application Environment- Outdoor
• Power Consumption- 4 W
• Language- English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
