Skip to contentHIKVISION DS-KD8003/Surface KD8 Series Pro Modular Door Station
描述

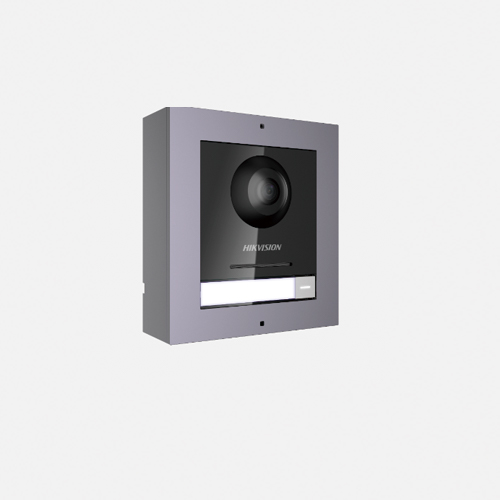

HIKVISION DS-KD8003/Surface KD8 Series Pro Modular Door Station
KD8 Series Pro Modular Door Station
- Modular door station for villa
- DS-KD8003 with its surface mounting accessories
- IP65 (DS-KD8003+DS-KD-ACW1)
- 2 MP HD video intercom function
- Supports sub-modules access
- Easy to and extend
System Parameters
- Operating System- Embedded Linux operation system
- ROM- 16 MB
- RAM- 256 MB
- CPU- Embedded MCU Processor
Video Parameter
- Lens- 1
- Resolution- Main stream : 1920 × 1080, Sub stream : 720 × 480
- FOV- Horizontal: 180° Vertical: 96°
- WDR- Support
- Supplement Light- IR supplement
- Video Compression Standard- H.264
Audio Parameters
- Audio Compression Standard- G.711 U
- Audio Input- Built-in omnidirectional microphone
- Audio Output- Built-in loudspeaker (More than 85 dB within 20 cm)
- Audio Compression Bitrate- 64 Kbps
- Audio Quality- Noise suppression and echo cancellation
- Volume Adjustment- Adjustable
Capacity
- Linked Network Camera Capacity- 500
- Holiday Group- 16
Network Parameters
- Communication Protocol- TCP/IP, RTSP
- Wired Network- 10/100 Mbps self-adaptive Ethernet
- Wi-Fi Standard- /
- Bluetooth Version- /
- 3G/4G Standard- /
Device Interfaces
- Alarm Input- 4
- Network Interface- 1
- TAMPER- 1
- Exit Button- 2
- RS-485- 1
- USB- /
- Wiegand- /
- TF Card- /
- Alarm Output- /
- Lock Control- 2
- Door Contact Input- 2
- Power Interface- 1
Performances
- Multi-Factor Authentication- 2000
General
- Button- 1
- Installation- Surface mounting
- Indicator- With package: 554 g, Without package: 375 g
- Protective Level- IP65
- Working Temperature- -40° C to +55° C(-40° F to 131° F)
- Working Humidity- 10% to 95%
- Dimensions- 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)
- Battery- /
- Application Environment- Outdoor
- Power Consumption- 4 W
- Language- English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
