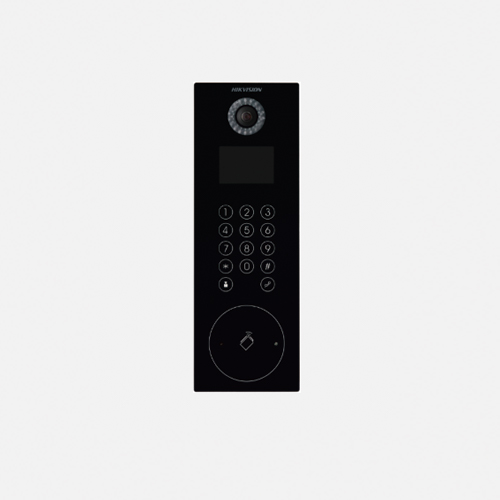

HIKVISION DS-KD8102-V KD8 Series Pro Acrylic Door Station
KD8 Series Pro Acrylic Door Station
- IP door station
- 1.3 MP Door Station, Visible Light Supplement, Plastic
- 3.5-inch LCD, 3.5″ Capacitive Touch Key
- Wiegand & RS-485, 8-ch alarm input,4-ch alarm output
- IP65, USB 2.0, 12 VDC
System Parameters
- Processor- High-Performance Embedded SOC Processor
- Operation System- Embedded Linux Operation System
Network Parameters
- Ethernet- 10/100/1000 Mbps Self-Adaptive Ethernet
- Network Protocol- TCP/IP, RTSP
Device Interfaces
- Network Interface- 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
- I/O Input- 8
- I/O Output- 4
- RS-485- 1 RS-485 Half-Duplex Port
- Wiegand- 1 Wiegand Port for Accessing Wiegand IC Card Reader
- USB- 1 USB 2.0, Supporting U-Disk
General
- Power Supply- 12 VDC
- Power Consumption- ≤15 W
- Working Temperature- -40° C to +60° C (-40° F to 140° F)
- Working Humidity- 10% to 90%
- IP Protection Level- IP65
