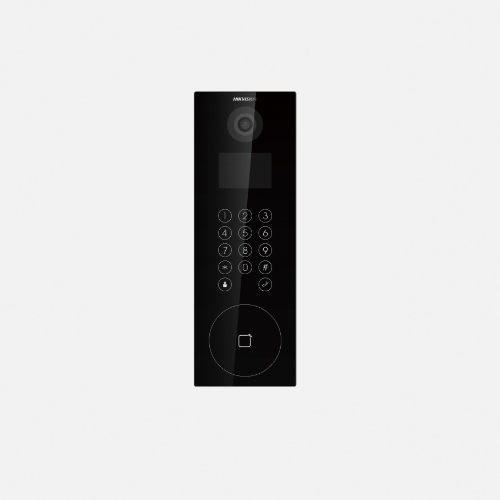

HIKVISION DS-KD8103-E6 3.5inch Plastic IP Door Station
3.5inch Plastic IP Door Station
- 2 MP HD camera with high quality image
- 120 ° wide angle of view
- 3.5-inch colorful LCD screen with 480 × 320 resolution
- Unlocks by cards and pin-codes
- Supports cofiguration via Web remotely
System Parameters
- Operating System- Embedded Linux operation system
- ROM- 4 GB
- RAM- 512 MB
- CPU- Embedded processor
Display Parameters
- Screen Size- 3.5-inch
- Operation Method- Display screen, touch buttons
- Type- Colorful LCD
- Resolution- 480 × 320
Video Parameters
- Lens- 2 MP HD camera
- Resolution- Main stream: 1920×1080p ,720p, Sub stream: 640×480
- FOV- Horizontal: 72°, Vertical: 119°, Diagonal: 132°
- WDR- Support
- Supplement Light- Low illumination, IR supplement lights
- Video Compression Standard- H.264
Audio Parameters
- Audio Compression Standard- G.711 U, G.711 A
- Audio Input- Built-in omnidirectional microphone
- Audio Output- Built-in loudspeaker
- Audio Compression Bitrate- 64 Kbps
- Audio Quality- Noise suppression and echo cancellation
- Volume Adjustment- Adjustable
Capacity
- Card Capacity- 10000
- Linked Network Camera Capacity- 500
Network Parameters
- Communication Protoco- lTCP/IP, RTSP
- Wired Network- Support
- Wi-Fi Standard- /
- Bluetooth Version- /
- 3G/4G Standard- /
Authentication
- Card Type- Mifare card
Device Interfaces
- Alarm Input- 8
- Network Interface- 1 10/100/1000 Mbps self-adaptive, RJ45 analog interface
- TAMPER- 1
- Exit Button- 2
- RS-485- 1
- USB- 0
- Wiegand- 1
- TF Card- /
- Alarm Output- 2
- Lock Control- 2
- Door Contact Input- 2
- Power Interface- 1
Performances
Multi-Factor Authentication- 10000
General
- Button- 14 touch buttons
- Installation- Flush mounting
- Indicator- Without package: 1.05 kg, With package: 2.166 kg
- Protective Level- IP 65
- Working Temperature- -40 ° C to +55 ° C (-40 ° F to +135 °F)
- Working Humidity- 10% to 95%
- Dimensions- 418 mm × 145 mm × 61 mm (16.46″ × 5.71″ × 2.40″)
- Battery- /
- Power Supply- ≤ 10 W
- Application Environment- Outdoor
- Language- English, Portuguese (Brazil), Russian, Spanish, French, Turkish, Vietnamese, Ukrainian
