Description

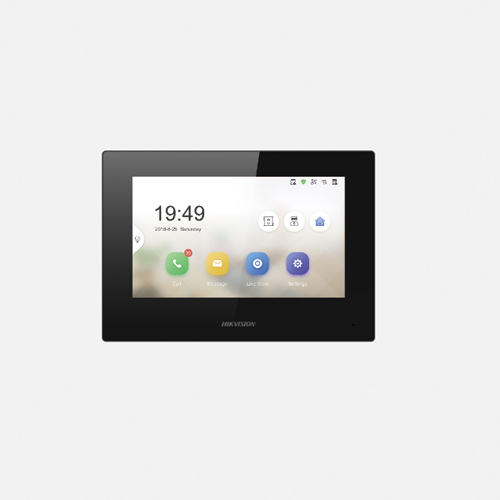

HIKVISION DS-KH6320-LE1(B) 7 inch touch IP indoor station

7 inch touch IP indoor station

• User friendly design
• 7-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Views live video of door stations and linked cameras

System Parameters

• Operating System- Linux
• ROM- 32 MB
• RAM- 128 MB
• CPU- Embedded processor

Display Parameters

• Screen Size- 7-inch
• Operation Method- Capactive touch
• Type- TFT LCD
• Resolution- 1024 × 600

Audio Parameters

• Audio Compression Standard- G.711 U, G.711 A
• Audio Input- Built-in omnidirectional microphone
• Audio Output- Built-in loudspeaker
• Audio Compression Bitrate- 64 Kbps
• Audio Quality- Noise suppression and echo cancellation
• Volume Adjustment- Adjustable

Capacity

• Event Capacity- 200
• Notice Capacity- 16
• Linked Indoor Extensions Capacity- 5

Network Parameters

• Communication Protocol- TCP/IP, RTSP
• Wired Network- Support
• Wi-Fi Standard- /
• Bluetooth Version- /
• 3G/4G Standard- /
• Zigbee- /

Device Interfaces

• Alarm Input- 8
• Network Interface- 1 RJ-45 10/100 Mbps self-adaptive
• TAMPER- /
• RS-485- /
• USB- /
• TF Card- /
• Alarm Output- /
• Power Interface- 1

General

• Button- /
• Installation- Flush mounting, wall mounting, table mounting
• Indicator- /
• Protective Level- /
• Working Temperature- -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity- 10% to 90%
• Dimensions- 200 mm × 140 mm × 15.1 mm (7.87″ ×5.51″ × 0.59″)
• Battery- /
• Power Supply- IEEE802.3af, standard PoE, 12 VDC
